2108948-4

Heilind Number:	AMP2108948-4
Manufacturer:	TE Connectivity
Manufacturer Number:	2108948-4
Datasheet:	Product Specification
ECAD Model:

Description:

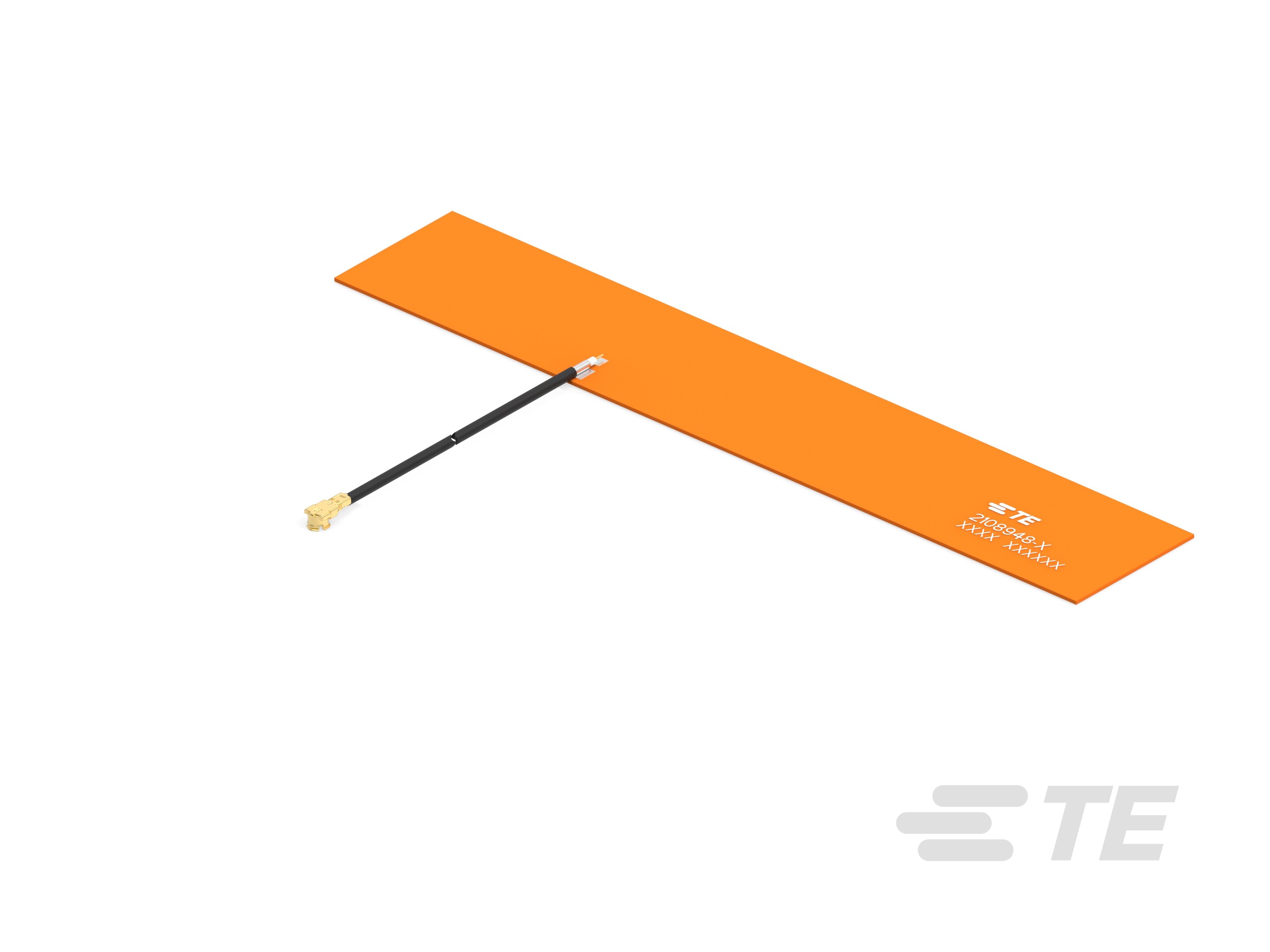

PCB Antenna, Multi Band, 5G / Cat-M/NB-IoT / Cellular, Internal/Embedded Mount, Adhesive, MHF / MHF1 / U.FL, Omnidirectional, Single Port

More >>

Specifications

Attribute	Value
Product Category:	Passives Antennas
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 2108948-4
Impedance:	50 Ω
Polarization:	Linear
Protocol:	802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, EU Triband, LTE, UMTS, US Dual Band, WCDMA, ZigBee
Mounting Style:	Adhesive
VSWR:	3.1:1
Antenna Type:	PCB
Antenna Termination Type:	MHF, MHF1, U.FL, UMCC
Application:	5G, Cat-M/NB-IoT, Cellular, GNSS, Wi-Fi
Band Type:	Multi Band
Center Frequency:	2925 MHz, 6062.5 MHz, 685 MHz
Directionality:	Omnidirectional
Frequency Range:	1850 - 4000 MHz, 5000 - 7125 MHz, 680 - 690 MHz
Gain:	3.8 dB
SKU:	AMP2108948-4

Detailed Description

Enhance your connectivity with this high-performance PCB antenna, boasting a 3.8 dB gain and 50 Ω impedance. With a VSWR of 3.1:1, it ensures reliable signal strength across multiple bands, including ZigBee, Bluetooth, LTE, UMTS, and various 802.11 standards. Designed for seamless integration, this omnidirectional antenna features an adhesive mount and supports MHF, MHF1, U.FL, and UMCC terminations. Covering frequencies from 1850 MHz to 7125 MHz, it's ideal for 5G, Cat-M/NB-IoT, Cellular, GNSS, and Wi-Fi applications. Compliant with RoHS, it meets environmental standards without compromising on performance. Elevate your wireless experience with this versatile antenna solution.
