2108948-5

AMP2108948_5
Heilind Number:AMP2108948-5
Manufacturer:TE Connectivity
Manufacturer Number:2108948-5
Datasheet:3D Model (STP)
ECAD Model:
3D Model

Description:

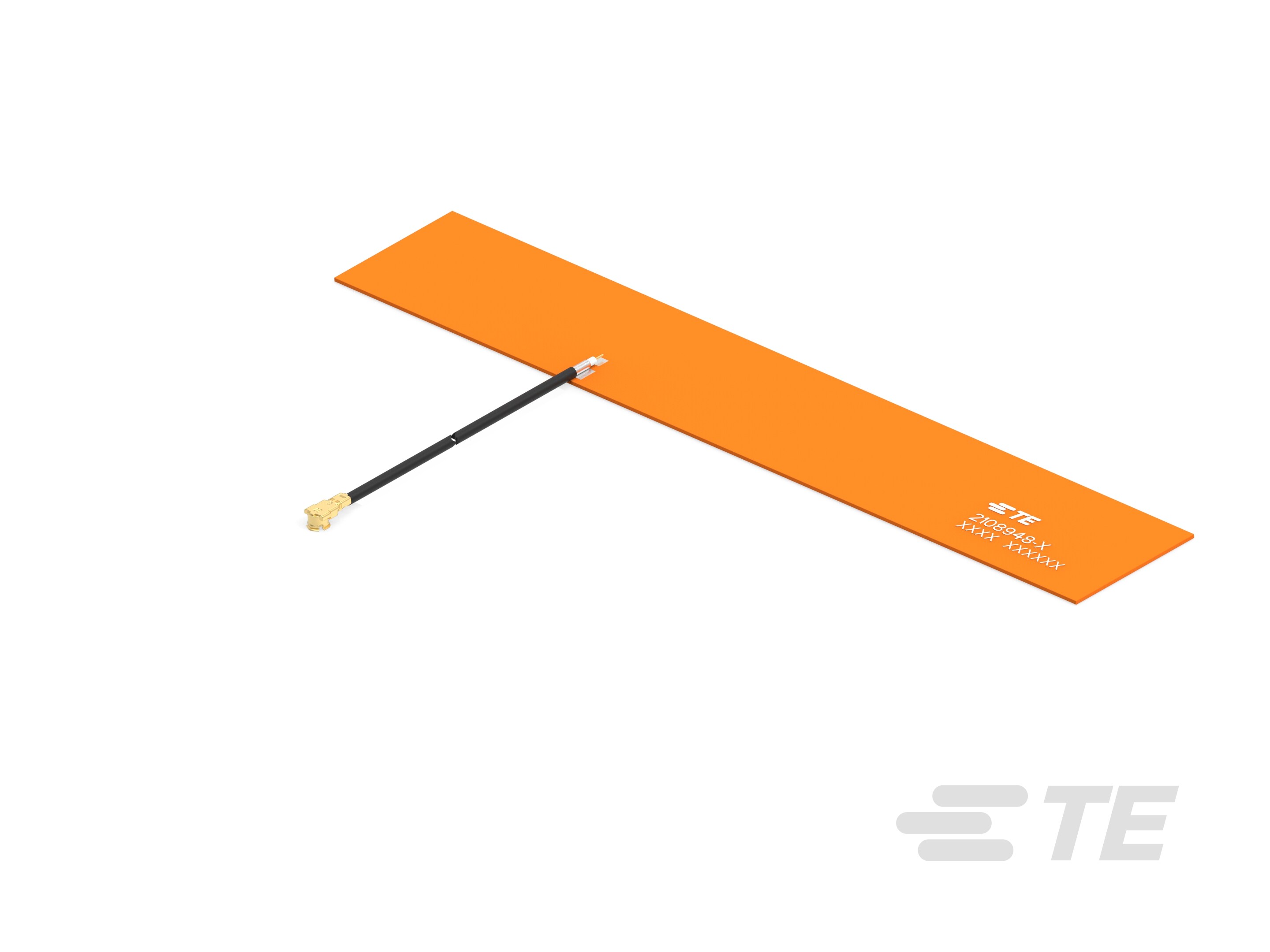

PCB Antenna, Multi Band, 5G / Cat-M/NB-IoT / Cellular, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108948-5
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, EU Triband, LTE, UMTS, US Dual Band, WCDMA, ZigBee
Mounting Style:Adhesive
VSWR:3.1:1
Antenna Type:PCB
Antenna Termination Type:MHF4
Application:5G, Cat-M/NB-IoT, Cellular, GNSS, Wi-Fi
Band Type:Multi Band
Center Frequency:2925 MHz, 6062.5 MHz, 700 MHz
Directionality:Omnidirectional
Frequency Range:1850 - 4000 MHz, 5000 - 7125 MHz, 690 - 710 MHz
Gain:4.5 dB
SKU:AMP2108948-5

Detailed Description

Enhance your connectivity with this high-performance PCB Antenna, designed for seamless integration in a variety of devices. With a gain of 4.5 dB and a VSWR of 3.1:1, it ensures reliable signal strength across multiple protocols including ZigBee, Bluetooth, LTE, UMTS, and various 802.11 standards. Operating on EU Triband and US Dual Band frequencies, it covers a wide range from 1850 MHz to 7125 MHz, catering to 5G, Cat-M/NB-IoT, Cellular, GNSS, and Wi-Fi applications. The adhesive mounting style and compact size make it perfect for internal/embedded installations. With linear polarization and omnidirectional directionality, it offers consistent performance in diverse environments. This RoHS-compliant antenna is a valuable asset for optimizing wireless communication in any setup.
