2108948-8

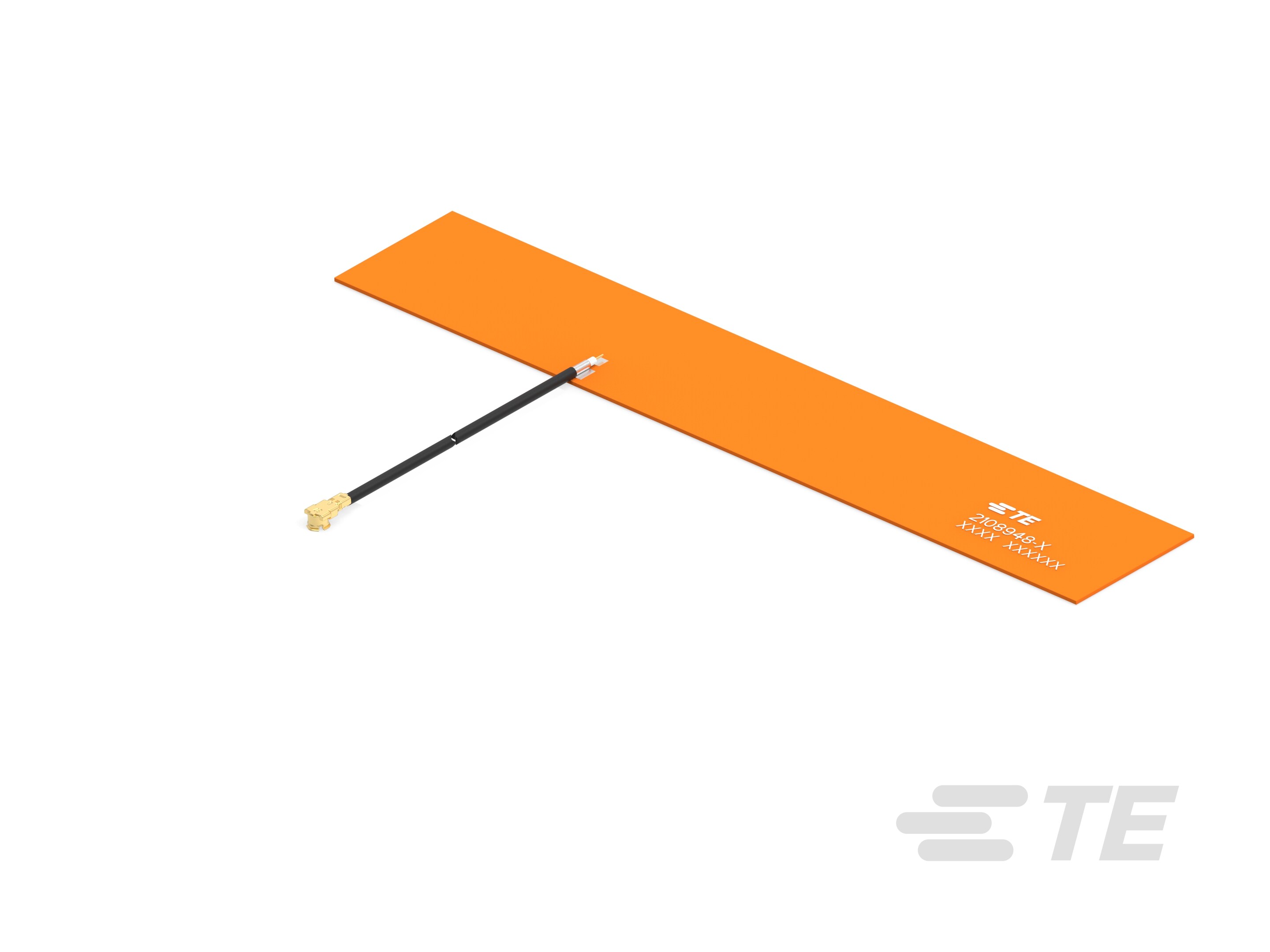

AMP2108948_8
Heilind Number:AMP2108948-8
Manufacturer:TE Connectivity
Manufacturer Number:2108948-8
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

PCB Antenna, Multi Band, 5G / Cat-M/NB-IoT / Cellular, Internal/Embedded Mount, Adhesive, MHF4, Omnidirectional, Single Port, Gain 3 < 6 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2108948-8
Impedance:50 Ω
Polarization:Linear
Protocol:802.11a, 802.11ac, 802.11ad, 802.11ax, 802.11b, 802.11g, 802.11n, Bluetooth, EU Triband, LTE, UMTS, US Dual Band, WCDMA, ZigBee
Mounting Style:Adhesive
VSWR:3.5:1
Antenna Type:PCB
Antenna Termination Type:MHF4
Application:5G, Cat-M/NB-IoT, Cellular, GNSS, Wi-Fi
Band Type:Multi Band
Center Frequency:2925 MHz, 6062.5 MHz, 690 MHz
Directionality:Omnidirectional
Frequency Range:1850 - 4000 MHz, 5000 - 7125 MHz, 680 - 700 MHz
Gain:3.6 dB
SKU:AMP2108948-8

Detailed Description

Enhance your wireless connectivity with this high-performance PCB antenna, designed for a range of protocols including ZigBee, Bluetooth, LTE, UMTS, and various 802.11 standards. With a gain of 3.6 dB and a VSWR of 3.5:1, it ensures reliable signal strength across multiple frequency bands, from 680 MHz to 7125 MHz. This omnidirectional antenna, featuring linear polarization and a compact internal mount with adhesive backing, is ideal for applications such as 5G, Cat-M/NB-IoT, cellular communication, GNSS, and Wi-Fi. RoHS compliant and with a 50 Ω impedance, it offers seamless integration and high performance in diverse wireless environments.
