282832-4

AMP282832-4
Heilind Number:AMP282832-4
Manufacturer:TE Connectivity
Manufacturer Number:282832-4
Datasheet:Agency Approval Document (UL)
ECAD Model:
3D Model

Description:

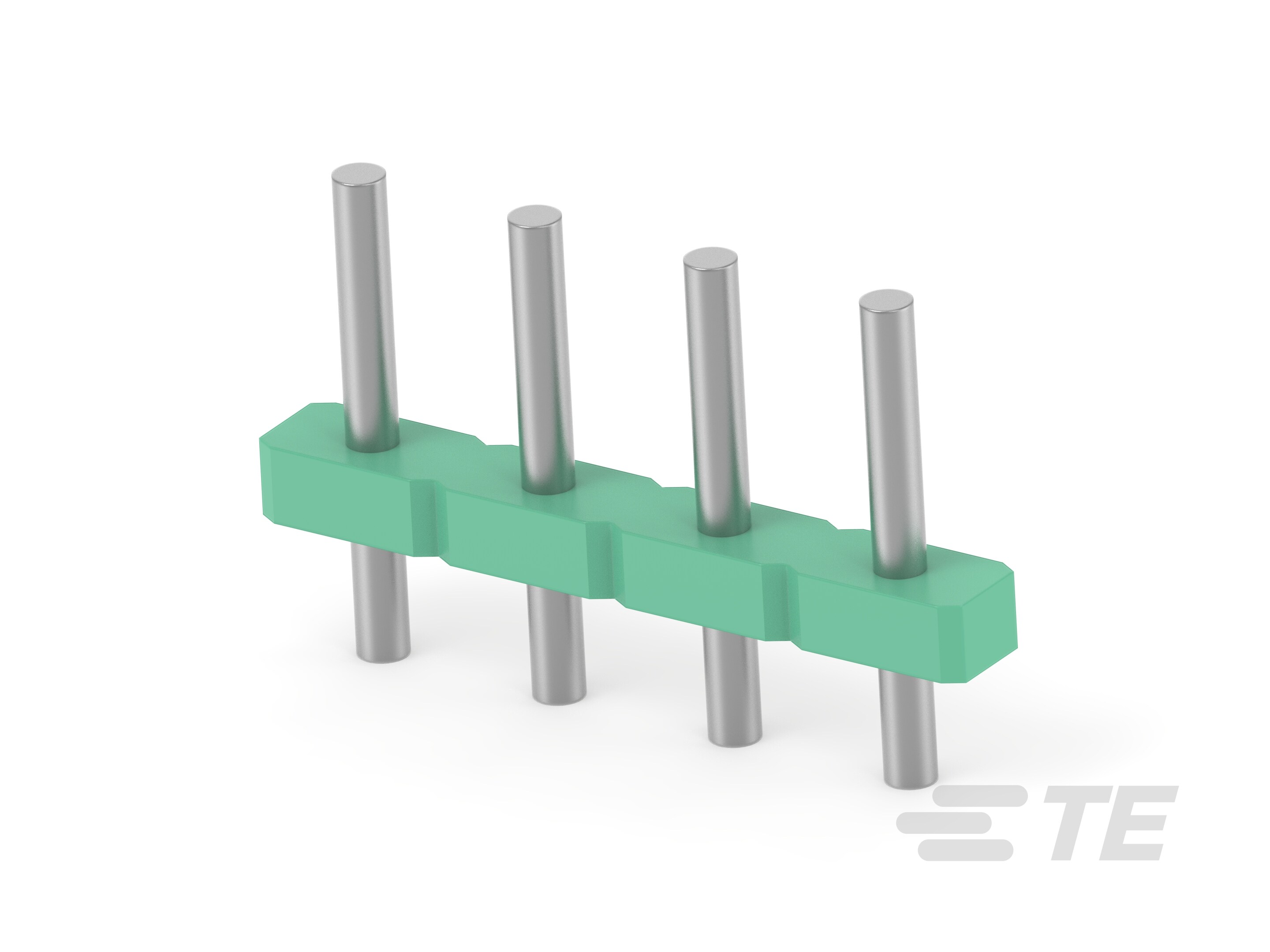

TERMI-BLOK PIN HEAD 180 4P. 5

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282832-4
Amperage:12 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:4
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.197 in, 5 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:Pin Header
Pin Length:.275 in, 7 mm
Package Quantity:150
Contact Amperage:15 A
Number of Positions:4
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Carton
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Connector System:Wire to Board
ECCN:EAR99
Header Type:Unshrouded
Closed End:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:Yes
Part Aliases:282832-4
SKU:AMP282832-4

Detailed Description

Introducing the TERMI-BLOK PIN HEAD 180 4P. 5, a versatile solution for your power and signal connectivity needs. This pin header features a single row design with four contacts, crafted from durable brass for reliable performance. With a pitch of 5mm, it offers efficient board mount installation, while its vertical mount angle and through-hole contact style ensure secure connectivity. The housing, made of PA 6/6 in a sleek green finish, meets industrial standards and is RoHS compliant. Operating temperature range of -40 to 105°C, with a voltage rating of 300V AC, guarantees suitability for various environments. Wave solder capable and lead-free, this header is ideal for wire-to-board connections in electronic assemblies. Each package contains 150 units, making it a convenient choice for bulk installations. Upgrade your terminal block setup with the TERMI-BLOK PIN HEAD 180 4P. 5.
