282966-4

AMP282966-4
Heilind Number:AMP282966-4
Manufacturer:TE Connectivity
Manufacturer Number:282966-4
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

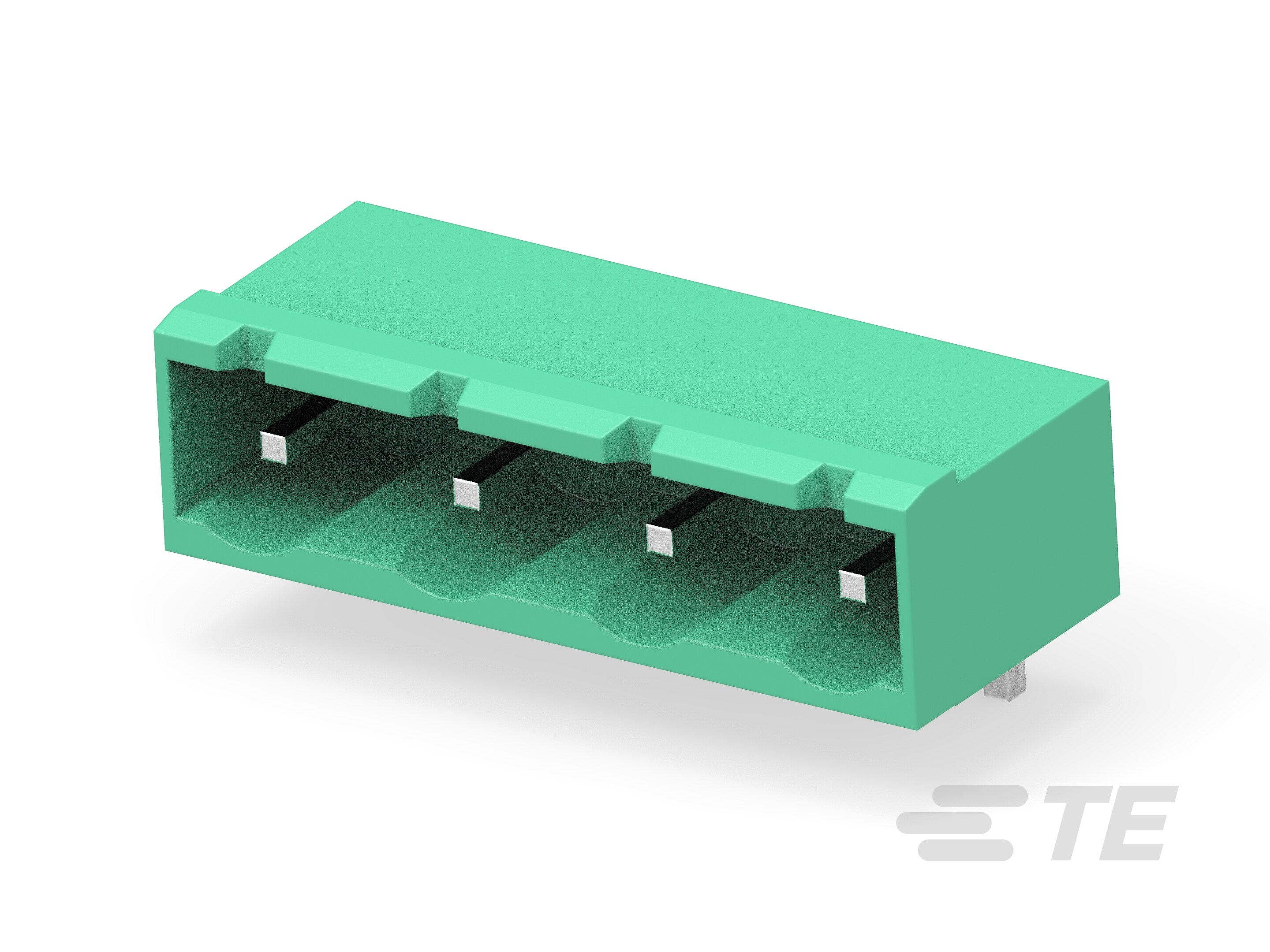

TERMI-BLOK HEADER ASSY 4P 7

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282966-4
Amperage:15 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:4
Number of Rows:1
Mount Type:Board Mount
Contact Material:Copper Alloy
Pitch:.3 in, 7.62 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:None
Package Quantity:150
Contact Amperage:15 A
Number of Positions:4
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
ECCN:EAR99
Header Type:Shrouded
Interlock:Without
Closed End:With
Threaded Flange:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:282966-4
SKU:AMP282966-4

Detailed Description

Introducing the TERMI-BLOK HEADER ASSY, a robust solution for your connectivity needs. This 4-position header assembly features a durable PA 6/6 housing in a vibrant green color, ensuring reliable performance in industrial settings. With a 15 A amperage rating and 300 V AC voltage capacity, it is suitable for power and signal applications. The right-angle mount type and through-hole contact mount style offer easy installation on printed circuit boards. Operating smoothly in temperatures ranging from -40 to 110 °C (-40 to 230 °F), this header assembly is designed to withstand harsh environments. RoHS compliant and lead-free solder capable, it meets international standards for environmental responsibility. Whether you're working with 12-30 AWG wire sizes or looking for wave solder capability, this assembly is a versatile choice. Each package includes 150 units, making it convenient for bulk installations. Trust in the quality and performance of the TERMI-BLOK HEADER ASSY for seamless connectivity in your applications.
