284094-2

AMP284094-2
Heilind Number:AMP284094-2
Manufacturer:TE Connectivity
Manufacturer Number:284094-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

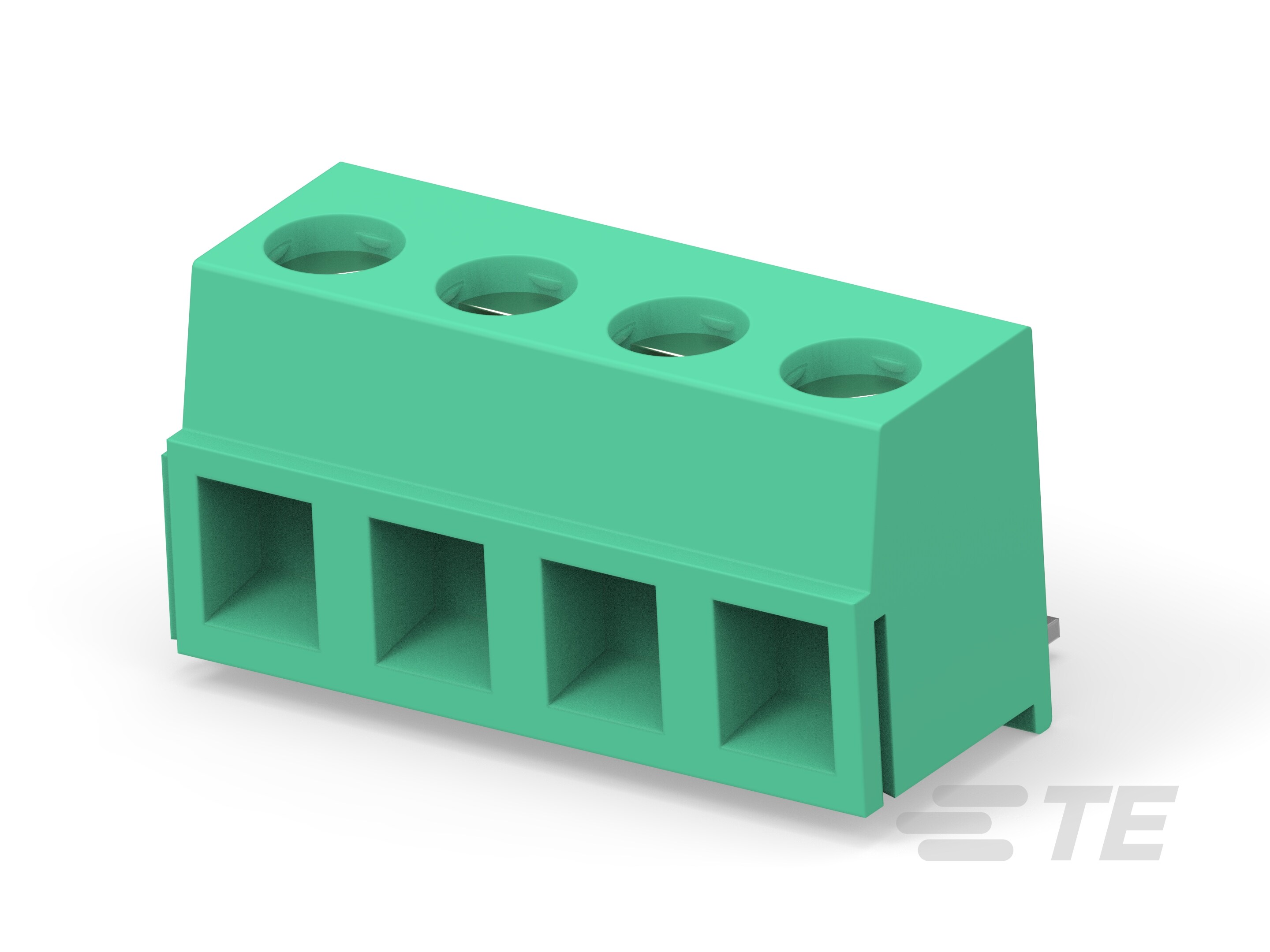

TERMI-BLOK PCB MOUNT 90, 5,08M

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284094-2
Amperage:13.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:2
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:300
Contact Amperage:13.5 A
Number of Positions:2
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Box
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 1.31 mm², 16 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Top
Interlock:With
Closed End:Without
Stacked Levels:Without
Threaded Flange:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:284094-2
SKU:AMP284094-2

Detailed Description

Enhance your PCB connectivity with the TERMI-BLOK 90° Header, featuring a secure 5.08mm pitch for efficient mounting. With a current rating of 13.5A and a robust PA 6/6 housing, this connector ensures reliable performance in power and signal applications. Its brass contacts with tin plating guarantee optimal conductivity, while the M3 screw size allows for easy installation. Operating in a wide temperature range from -40 to 110°C, this industrial-grade connector is suitable for various environments. Packaged in a convenient box of 300, it offers a cost-effective solution for your wire-to-board connections. Compliant with RoHS standards, it's a sustainable choice for your projects. Upgrade your system with the TERMI-BLOK 90° Header for dependable and efficient terminal block connectivity.
