284512-8

AMP284512-8
Heilind Number:AMP284512-8
Manufacturer:TE Connectivity
Manufacturer Number:284512-8
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

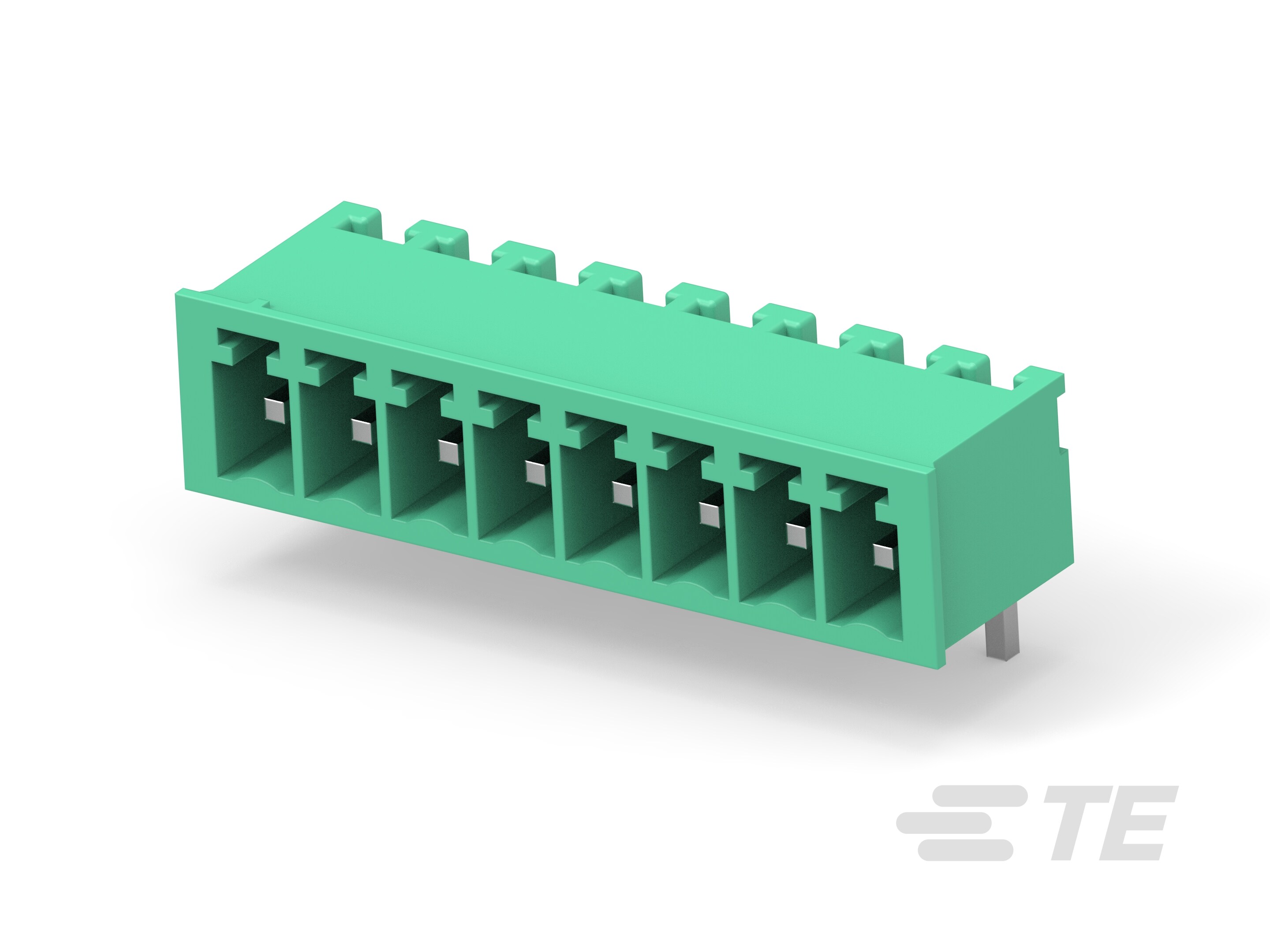

8 POS TERMI-BLOK HDR 900 POLAR

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284512-8
Amperage:11 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:8
Number of Rows:1
Mount Type:Board Mount
Contact Material:Phosphor Bronze
Pitch:.138 in, 3.5 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:PCB Mount
Package Quantity:100
Contact Amperage:11 A
Number of Positions:8
Housing Color:Green
GPL:124
Tail Length:.134 in, 3.4 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
ECCN:EAR99
Header Type:Shrouded
Interlock:Without
Closed End:With
Threaded Flange:Without
Contact Mount Style:Through Hole
Mating Angle:90°
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:284512-8
SKU:AMP284512-8

Detailed Description

Enhance your power and signal connections with our 8-position board mount header. Designed for reliability and efficiency, this header features a right-angle mount, ideal for PCB applications. With a contact amperage of 11A and a voltage rating of 300V AC, it ensures a secure and stable connection. The green housing color and industrial-grade lead-free solder processes make it suitable for a variety of environments. Its shrouded header type and through-hole mount style provide added durability and ease of installation. RoHS compliant, this header is a dependable choice for your wire to board connections.
