| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 6-1393788-9 |
| Series: | Axicom P2 Signal Relay |
| Mount Type: | Printed Circuit Board |
| Terminal Type: | PCB-SMT |
| Insertion Loss: | -.02 dB at 100 MHz, -.27 dB at 900 MHz |
| Number of Poles: | 2 |
| Coil Resistance: | 1029 Ω |
| Power Consumption: | 140 mW |
| Contact Configuration: | 2 Form C (CO) |
| Maximum Switching Voltage: | 220 VDC, 250 VAC |
| Isolation: | -20.7 dB at 900 MHz, -39 dB at 100 MHz |
| Termination Type: | Surface Mount |
| Contact Current Rating: | 4 A |
| Coil Type: | Bistable, 2 Coils |
| SKU: | AMP6-1393788-9 |
6-1393788-9
Specifications
Detailed Description
Introducing the V23079E1203B301 Axicom P2 Signal Relay, a high-performance component designed for printed circuit board applications. Featuring PCB-SMT terminals, this relay ensures secure and reliable connections. With an insertion loss of -.02 dB at 100 MHz and -.27 dB at 900 MHz, it offers exceptional signal integrity. The 2 Form C (CO) contact configuration allows for versatile switching capabilities, while the coil resistance of 1029 Ω and low power consumption of 140 mW optimize efficiency. Operating at a maximum switching voltage of 220 VDC and 250 VAC, it is suitable for a wide range of applications. With a compact surface mount termination and RoHS compliance, this relay is both space-saving and environmentally friendly, making it an ideal choice for signal and communication relay needs.
For Use With
| Product | Part # | Description | Stock |
|---|---|---|---|
 | TE Connectivity V23079B1203B301 |  | |

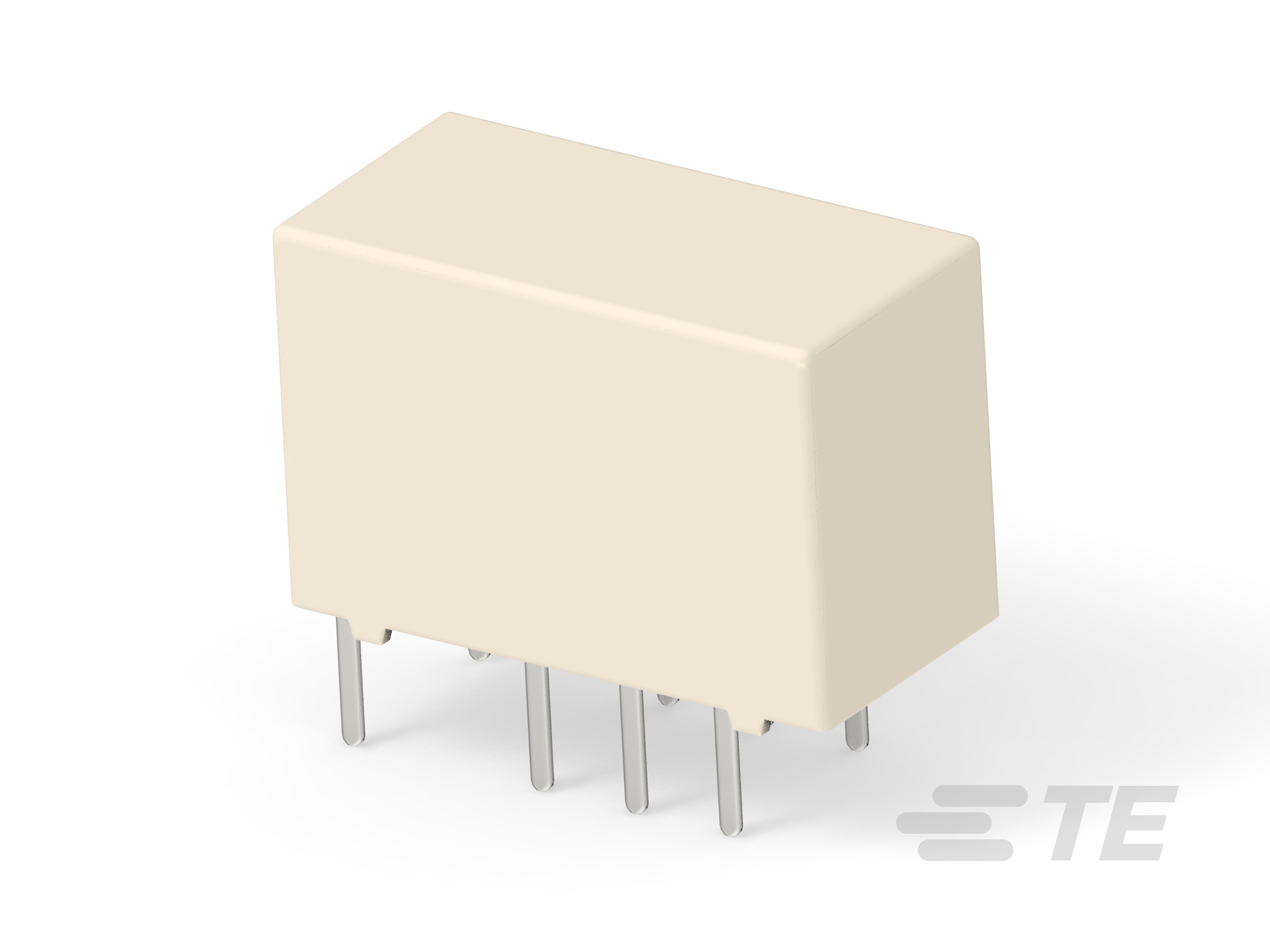

 | TE Connectivity 8-1393788-3 | |
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
