172-E09-203R011

TEX172_E09_203R011
Heilind Number:TEX172-E09-203R011
Manufacturer:NorComp
Manufacturer Number:172-E09-203R011
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

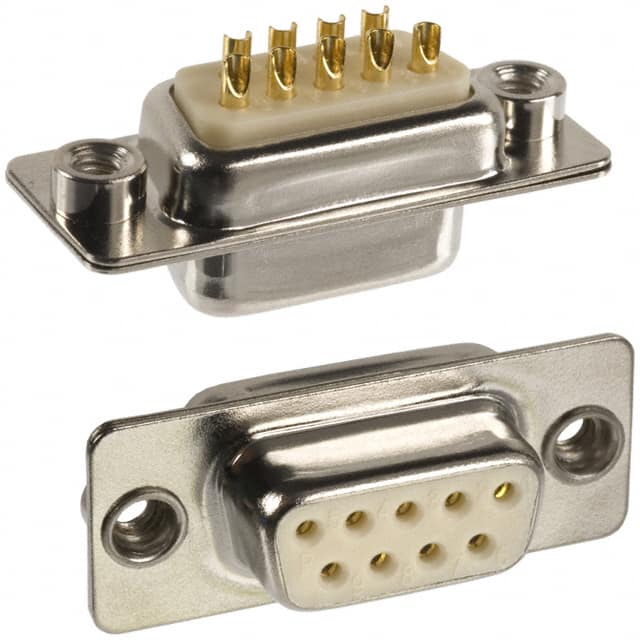

Female D-Sub 9 Position Straight Solder Cup

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 172-E09-203R011
Gender:Receptacle
Series:172-E
Mount Angle:Straight
Shell Finish:Nickel Plated
Current Rating:5 A
Shell Material:Steel
Contact Plating:Gold Flash
Termination Method:Solder Cup
Number of Positions:9
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Voltage Rating:250 VAC
Signal Wire Size:20-26 AWG
SKU:TEX172-E09-203R011

Detailed Description

Introducing the 172-E09-203R011, a Female D-Sub 9 Position Straight Solder Cup connector from our M SERIES campaign. Designed for reliable signal transmission, this receptacle features Gold Flash contact plating for enhanced conductivity and durability. With a wide operating temperature range of -55°C to 125°C, it ensures performance in diverse environments. The solder cup termination method and nickel-plated steel shell construction offer secure and stable connections. Suitable for 20-26 AWG signal wires, it has a current rating of 5 A and voltage rating of 250 VAC, making it ideal for various industrial applications. RoHS compliant, this connector meets strict environmental standards. Upgrade your connectivity solutions with the 172-E09-203R011, a dependable choice for IO and high-reliability systems.
