180-015-103L021

TEX180_015_103L021
Heilind Number:TEX180-015-103L021
Manufacturer:NorComp
Manufacturer Number:180-015-103L021
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

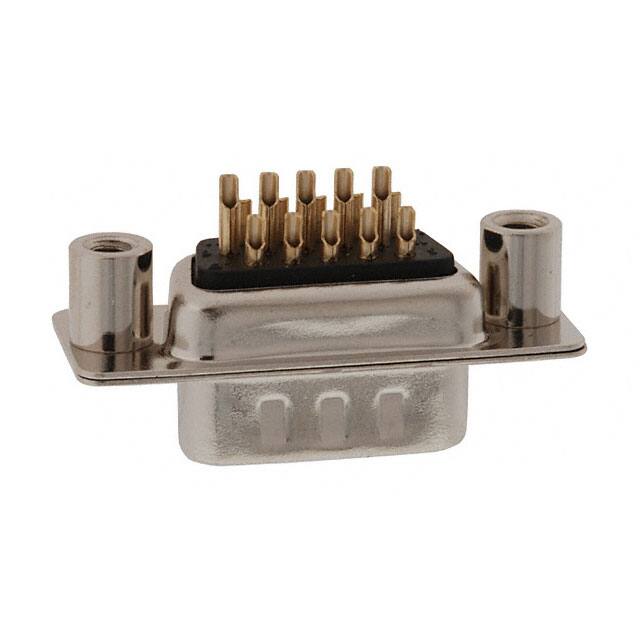

Male High-Density D-Sub 15 Position Straight Solder Cup

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 180-015-103L021
Series:180
Gender:Plug
Termination Method:Solder Cup
Contact Plating:Gold Flash
Maximum Operating Temperature:100 °C
Minimum Operating Temperature:-50 °C
Mount Angle:Straight
Number of Positions:15
Shell Material:Steel
Signal Wire Size:24 AWG
Shell Finish:Nickel Plated
Current Rating:3 A
SKU:TEX180-015-103L021

Detailed Description

Introducing the 180-015-103L021 Male High-Density D-Sub 15 Position Straight Solder Cup connector. Designed for reliable and secure connections, this plug features gold flash contact plating for optimal conductivity. With a wide operating temperature range of -50°C to 100°C, it ensures performance in diverse environments. The steel shell with nickel plating offers durability and corrosion resistance. Suitable for signal wire sizes up to 24 AWG, it is ideal for various applications. With RoHS compliance, rest assured of its environmental friendliness. Upgrade your connectivity solutions with this high-quality D-Sub connector.
