1-111446-5

AMP1-111446-5
Heilind Number:AMP1-111446-5
Manufacturer:TE Connectivity
Manufacturer Number:1-111446-5
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

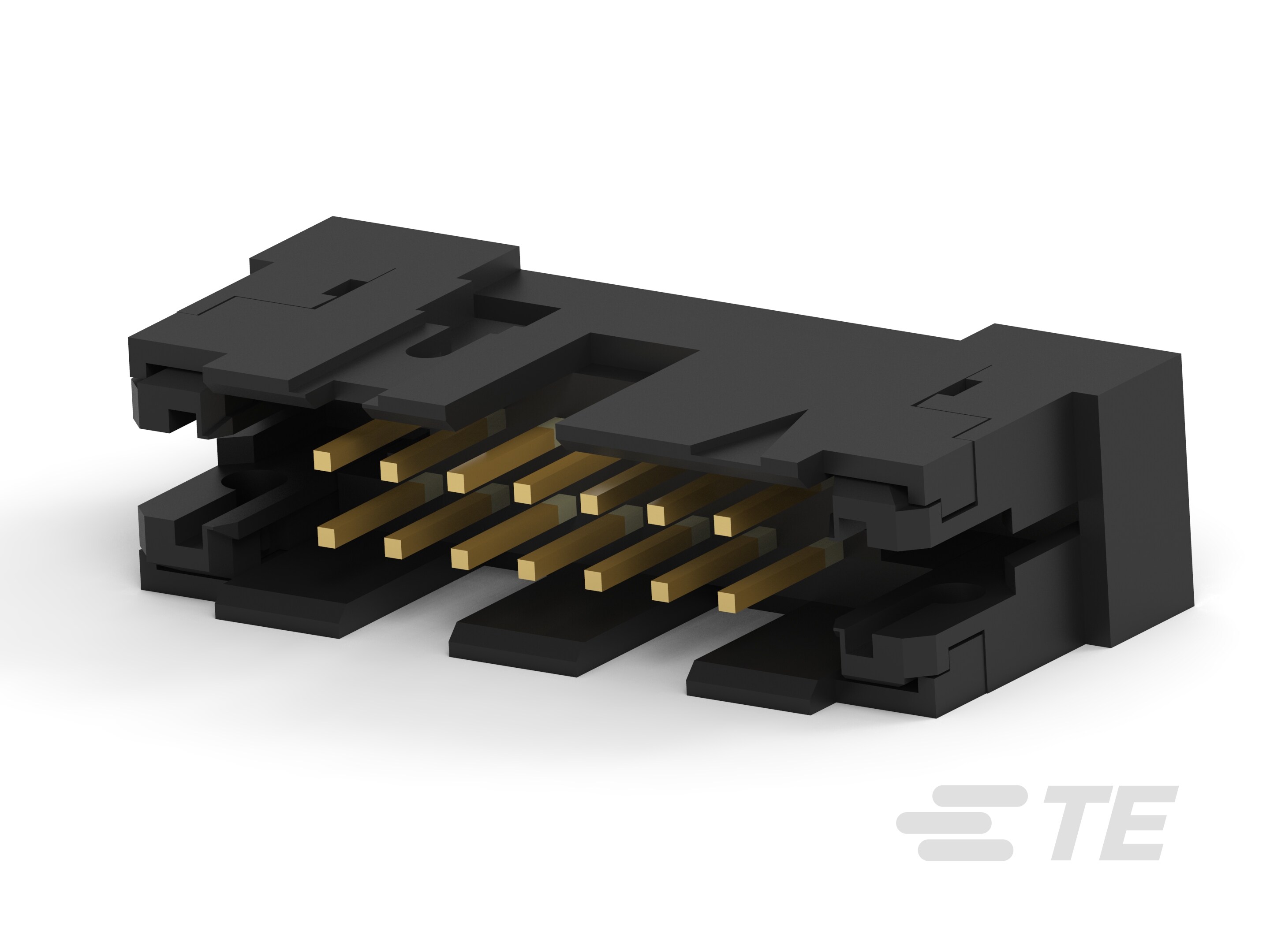

14 UNIV I/O, NO EARS,LEAD FREE

More >>

Specifications

AttributeValue
Product Category:
FFC, FPC, Ribbon & IDT Connectors IDC Ribbon Cable Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-111446-5
Amperage:1 A
Connector Type:Connector Assembly
Gender:Plug
Housing Material:Thermoplastic
Number of Contacts:14
Number of Rows:2
Mount Type:Cable Mount (Free-Hanging)
Termination Method:Insulation Displacement Crimp (IDC), Through Hole - Solder
Contact Material:Phosphor Bronze
Body Orientation:Straight
Pitch:.1 in, 2.54 mm
Voltage:250 VAC
Row Spacing:.1 in, 2 mm
Polarization:With
Package Quantity:90
Cable Type:Solid/Stranded
Contact Amperage:1 A
Number of Positions:14
Housing Color:Black
Mount Orientation:Vertical
Insulation Resistance:5000 MΩ
GPL:034
Profile:Low
Packaging:Box & Tray, Tray
Operating Temperature Range:-65 - 105 °C, -85 - 221 °F
Circuit Application:Signal
Contact Mating Area Plating Thickness:29.92 µin, 30 µin, .76 µm
Panel Mount:Without
PCB Retention:Without
Contact Termination Plating Thickness:100 µin
Connector Height:14.48 mm, .57 in
PCB Retention Type:Screw Mount
Mating Alignment:With
Mating Alignment Type:Keyed
GPL Description:Data and Devices
Connector and Contact Terminate To:Wire & Cable
Product Code:0799
Wire Size:.08 - .15 mm², 158 - 296 CMA, 26 - 28 AWG
Contact Design:Tuning Fork
Contact Transmits:Signal (Data)
Connector Length:1.272 in, 32.31 mm
Connector System:Wire to Wire
CSA Agency Certification:LR 7189
UL Agency Certification:E28476
Connector Product Type:Connector
Mating Post Length:.24 in, 6.1 mm
Connector Width:.33 in, 8.38 mm
PCB Mount Alignment:With
Header Type:Shrouded
Mating Connector Lock:Without
Accepts Wire Insulation Diameter:.032 - .038 in, .81 - .97 mm
Voltage Rating (UL):250 V AC
Board Standoff:Without
Shrouded End Dimension:.15 in, 3.81 mm
Daisy Chain:Without
Ejection Latches:Without
Standards Met:CSA UL
Material Flammability Standard:UL 94V-0
Part Aliases:1-111446-5
SKU:AMP1-111446-5

Detailed Description

Enhance connectivity with this versatile Connector Assembly, featuring a straight housing orientation and through-hole solder termination method. With 14 contacts arranged in 2 rows, it ensures secure and efficient signal transmission. Crafted from durable thermoplastic with phosphor bronze contacts, it meets CSA and UL standards for reliable performance. Suitable for cable mounting, it accommodates solid/stranded wires and offers a low-profile design ideal for space-conscious applications. Featuring a black housing color and a voltage rating of 250 VAC, it's perfect for various signal circuit applications. With a wide operating temperature range and high insulation resistance, it guarantees long-lasting functionality. RoHS compliant and designed for easy assembly, this Connector Assembly is an essential component for your connectivity needs.
