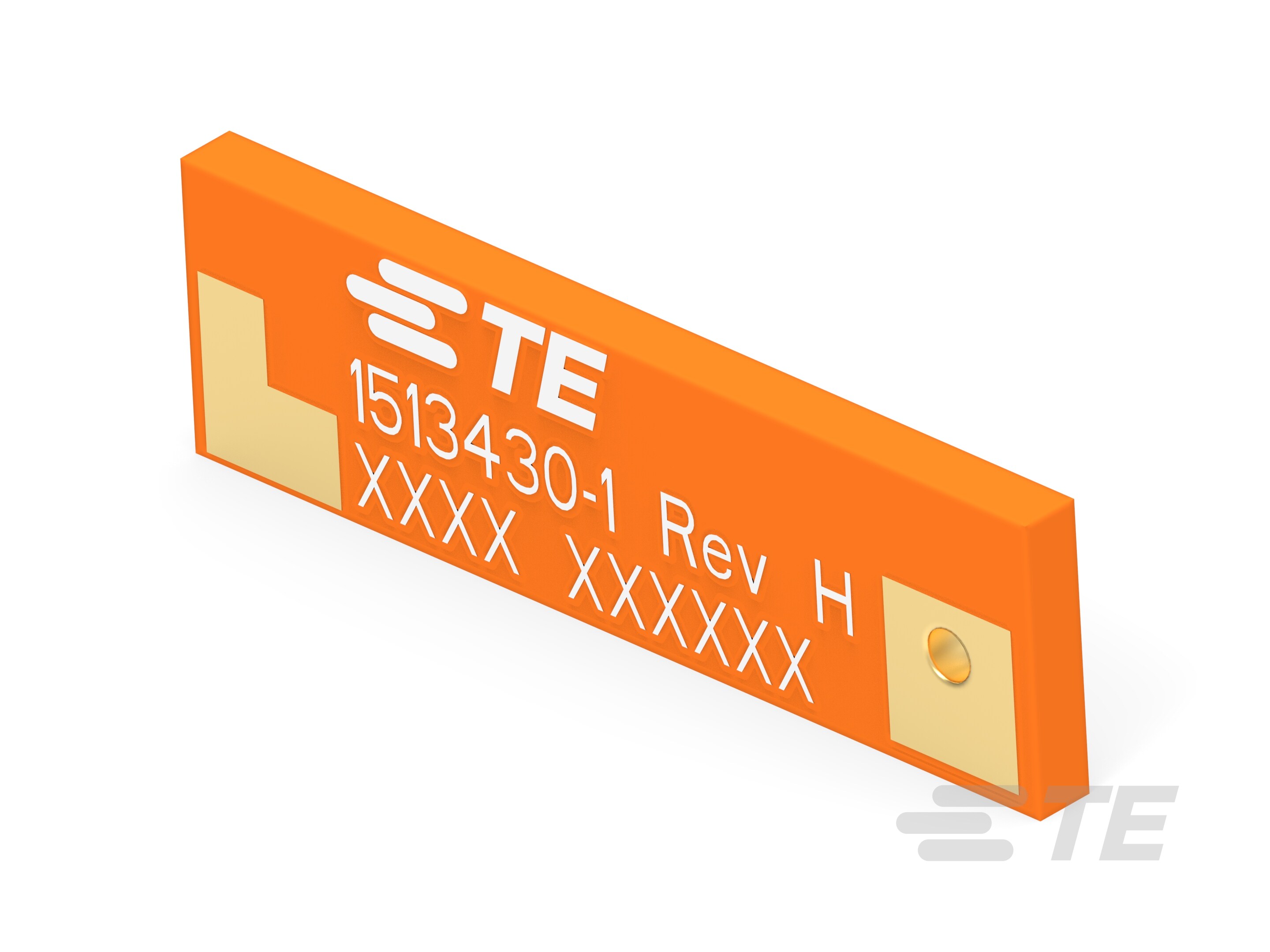

1513430-1

AMP1513430_1
Heilind Number:AMP1513430-1
Manufacturer:TE Connectivity
Manufacturer Number:1513430-1
Datasheet:Product Specification
ECAD Model:
3D Model

Description:

Chip Antenna, Single Band, Bluetooth / Wi-Fi, Internal/Embedded Mount, Surface Mount, Omnidirectional, Single Port, Gain 0 < 3 dBi

More >>

Specifications

AttributeValue
Product Category:
Passives Antennas
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1513430-1
Impedance:50 Ω
Polarization:Linear
Protocol:802.11b, 802.11g, Bluetooth, ZigBee
Mounting Style:Surface Mount
VSWR:2:1
Antenna Type:Chip, PCB
Application:Bluetooth, Wi-Fi
Band Type:Single Band
Center Frequency:2441.75 MHz
Directionality:Omnidirectional
Frequency Range:2400 - 2483.5 MHz
Gain:2 dB
SKU:AMP1513430-1

Detailed Description

Enhance your Bluetooth and Wi-Fi connectivity with this high-performance chip antenna. Designed for internal/embedded mounting on PCBs, it boasts a compact surface mount form factor. Delivering omnidirectional coverage with a gain of 2dB, this antenna operates within the 2400 - 2483.5 MHz frequency range, centered at 2441.75 MHz. With RoHS compliance and a VSWR of 2:1, it ensures reliable signal transmission. Ideal for ZigBee, Bluetooth, and 802.11 protocols, it offers seamless integration for various wireless applications. Boasting linear polarization and 50 Ω impedance, it guarantees optimal performance in a diverse range of settings. Elevate your wireless connectivity with this cutting-edge antenna solution.
