2029177-5

AMP2029177-5
Heilind Number:AMP2029177-5
Manufacturer:TE Connectivity
Manufacturer Number:2029177-5
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

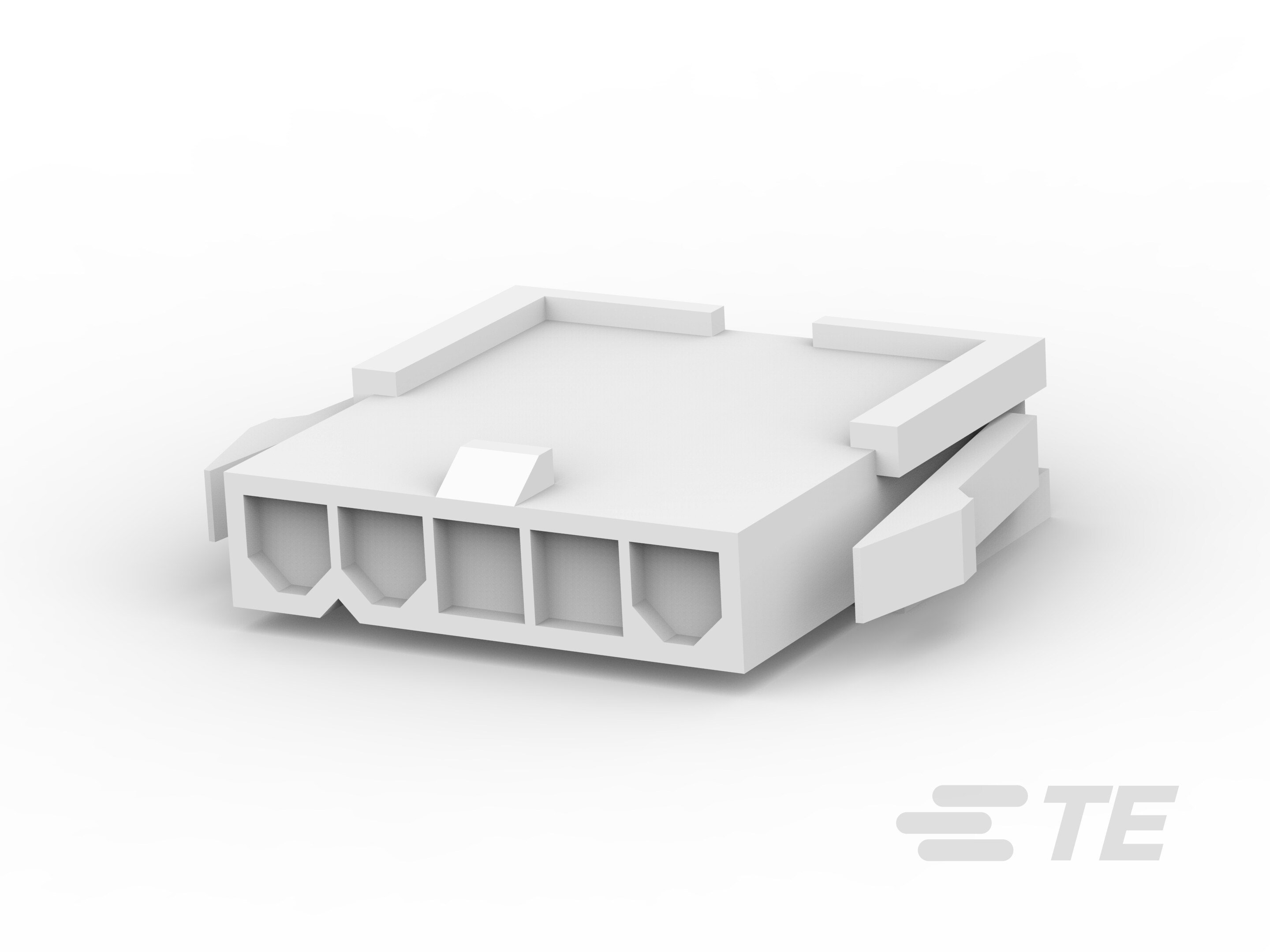

5P S/R PM PLUG VAL-U-LOK GW

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2029177-5
Housing Material:Nylon 6
Number of Rows:1
Mount Type:Panel
Termination Method:Crimp
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Receptacle
Package Quantity:1000
Cable Type:Discrete Wire
Number of Positions:5
Housing Color:White
GPL:G31
Packaging:Bag
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Connector Height:.291 in, 7.4 mm
Sealable:No
GPL Description:Appliances
Connector and Contact Terminate To:Wire & Cable
Product Code:K924
Connector Length:23.9 mm, .94 in
Connector System:Wire to Panel
CSA Agency Certification:208567
Connector Product Type:Housing
ECCN:EAR99
Connector Width:22.2 mm, .874 in
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Contact Retention:Without
Glow Wire Rating:GWT 750°C (Without Flame)
Circuit Identification Feature:With
Connector and Housing Type:Plug
Standards Met:UL CSA
Material Flammability Standard:UL 94V-2
Part Aliases:2029177-5
SKU:AMP2029177-5

Detailed Description

Enhance your power and signal connections with our UL and CSA standards-compliant housing, designed for efficient panel mounting. With a durable Nylon 6 construction in a sleek white finish, this connector accommodates discrete wire cable types, offering five receptacle contact positions for seamless integration. Its crimp termination method and 4.2mm pitch ensure secure and reliable performance, even in demanding environments. Operating flawlessly in temperatures ranging from -40 to 105°C (-40 to 221°F), it's ideal for a variety of applications. This housing, part of our Wire to Panel connector system, is essential for appliances and other electronic devices, meeting RoHS compliance for added peace of mind. With a package quantity of 1000, it's perfect for large-scale projects. Upgrade your connectivity solutions with this high-quality, versatile component.
