282805-2

AMP282805-2
Heilind Number:AMP282805-2
Manufacturer:TE Connectivity
Manufacturer Number:282805-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

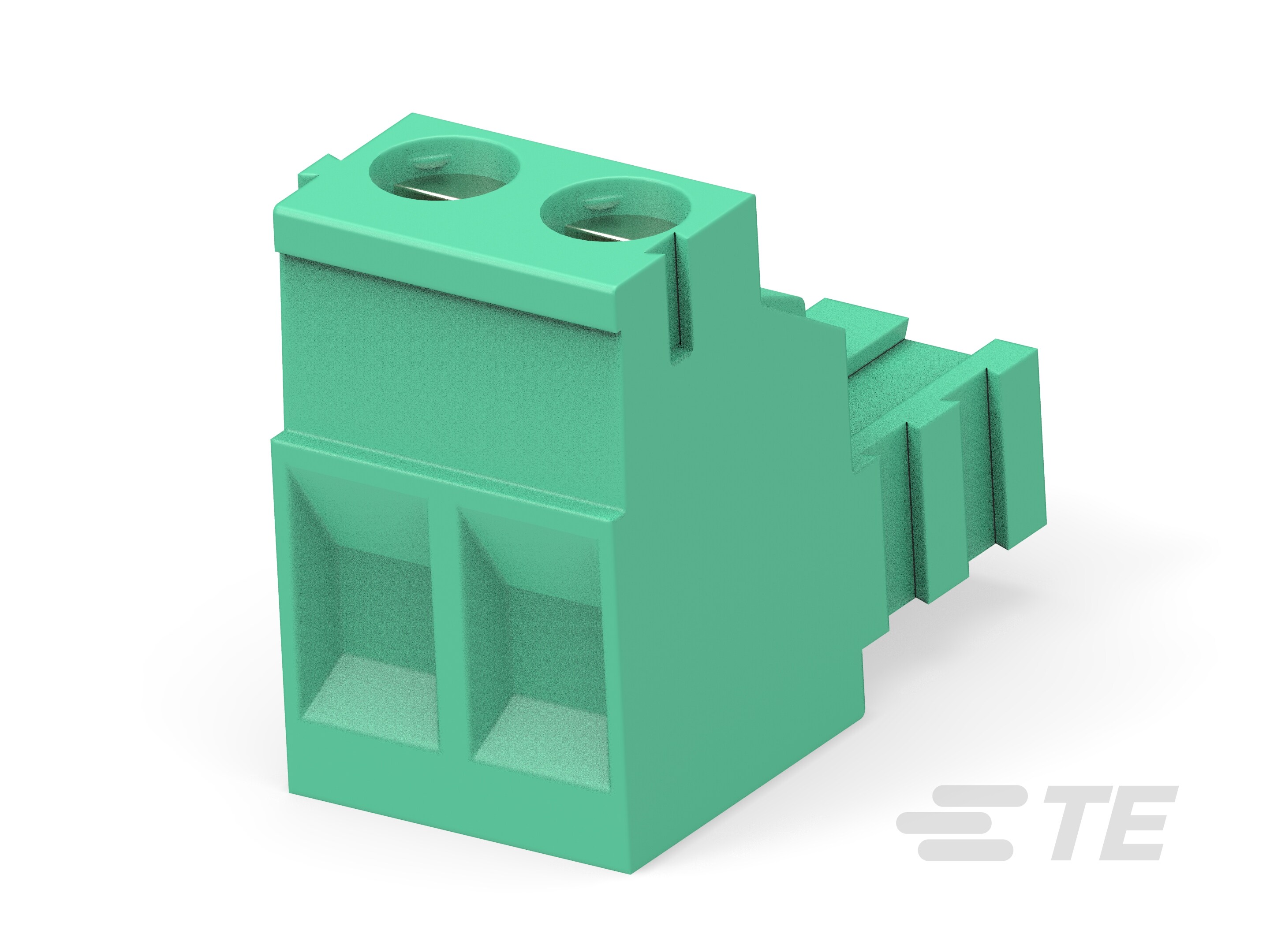

TERMI-BLOK PLUG STACKING 2POS.

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282805-2
Amperage:15 A
Gender:Plug
Housing Material:Polyamide 6/6 - GF
Number of Contacts:2
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.197 in, 5 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:300
Contact Amperage:15 A
Number of Positions:2
Housing Color:Green
GPL:124
Packaging:Box
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Screw Flange:Without
Screwless Terminal Block:Yes
Wire Protection:With
Part Aliases:282805-2
SKU:AMP282805-2

Detailed Description

Easily connect and stack your power and signal cables with this TERMI-BLOK PLUG STACKING 2POS. terminal block. Designed for industrial use, it features a durable Polyamide 6/6 - GF housing in a vibrant green color. With two phosphor bronze contacts, it ensures reliable conductivity with a maximum amperage of 15 A. The right-angle mount, along with a 5 mm pitch, allows for efficient installation in tight spaces. Operating in a wide temperature range from -40 to 110 °C, it is suitable for various environments. This terminal block is RoHS compliant and suitable for lead-free solder processes, making it a sustainable choice for your connectivity needs. With 300 pieces in a package, it offers convenience and value for your projects.
