282836-7

AMP282836-7
Heilind Number:AMP282836-7
Manufacturer:TE Connectivity
Manufacturer Number:282836-7
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

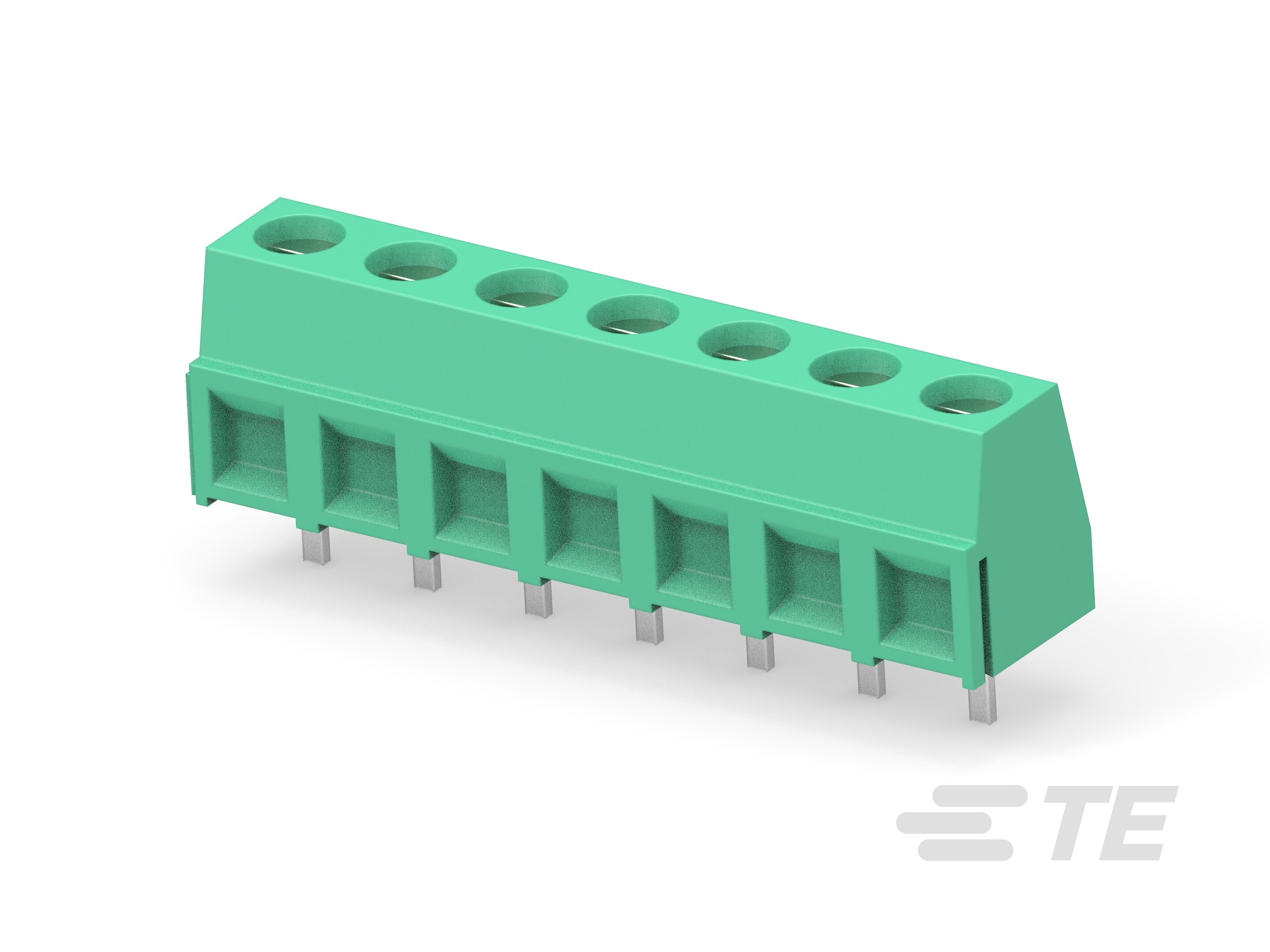

TERMI-BLOK PCB MOUNT 90 7P.

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282836-7
Amperage:13.5 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:7
Number of Rows:1
Mount Type:Board Mount
Contact Material:Brass
Pitch:.197 in, 5 mm
Voltage:300 V AC
Mount Angle:Straight
Block Type:Stacking w/interlock
Screw Size:M3
Package Quantity:100
Contact Amperage:13.5 A
Number of Positions:7
Housing Color:Green
GPL:124
Tail Length:.138 in, 3.5 mm
Packaging:Box
Operating Temperature Range:-40 - 110 °C, -40 - 230 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7742
Wire Size:.05 - 1.3 mm², 16 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:With
Closed End:Without
Stacked Levels:Without
Contact Mount Style:Through Hole
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:282836-7
SKU:AMP282836-7

Detailed Description

Introducing the TERMI-BLOK PCB Mount 90 7P, a versatile solution for power and signal applications. This single-row header features a durable PA 6/6 housing in a sleek green color, ideal for board mounting. With 7 contacts, it offers reliable connectivity with a pitch of 5mm (.197 in) and a contact amperage of 13.5 A. Operating at temperatures ranging from -40 to 110°C (-40 to 230°F), it is suitable for industrial environments. The tin-plated brass contact mating area ensures optimal performance, while its wave solder capability up to 240°C simplifies installation. RoHS compliant and lead-free, this connector meets international standards for environmental responsibility. Whether for wire-to-board connections or side stackable setups, the TERMI-BLOK header is a dependable choice for your electronic projects.
