284040-2

AMP284040-2
Heilind Number:AMP284040-2
Manufacturer:TE Connectivity
Manufacturer Number:284040-2
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

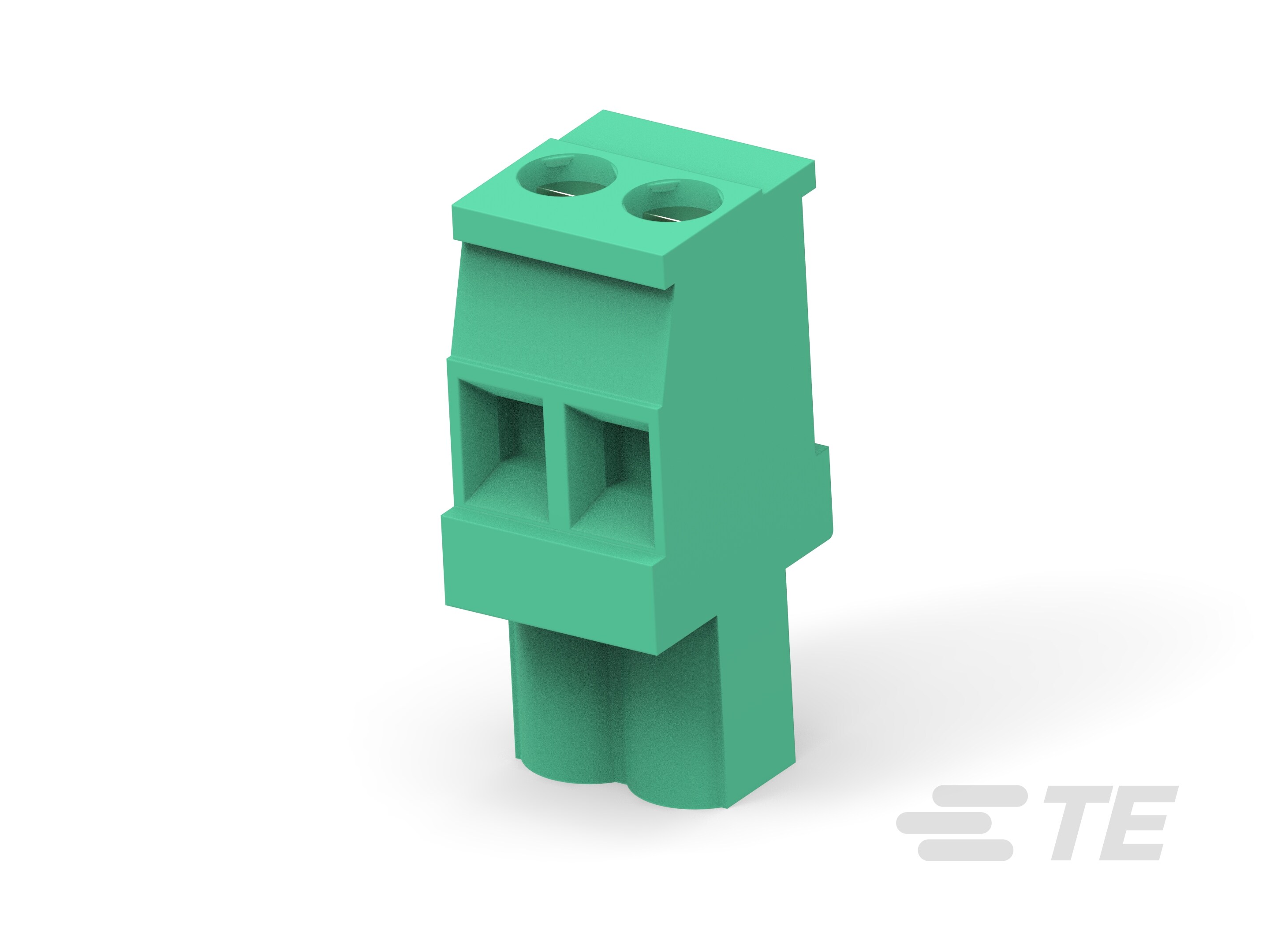

TERMI-BLOK VERTICAL PLUG STACK

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284040-2
Amperage:15 A
Gender:Plug
Housing Material:PA 6/6
Number of Contacts:2
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.197 in, 5 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:Stacking Plug
Screw Size:M3
Package Quantity:300
Contact Amperage:15 A
Number of Positions:2
Housing Color:Green
GPL:124
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Marking Color:White
Screw Flange:Without
Screwless Terminal Block:Yes
Wire Protection:With
Part Aliases:284040-2
SKU:AMP284040-2

Detailed Description

Introducing the TERMI-BLOK VERTICAL PLUG STACK, a versatile solution for your power and signal connections. This stacking plug features a durable PA 6/6 housing in a vibrant green color, ideal for industrial applications. With two contacts and a 15A amperage rating, it ensures reliable performance. The phosphor bronze contact material with tin plating offers excellent conductivity, while the 5mm pitch allows for easy installation. Operating temperature range from -40 to 105°C makes it suitable for various environments. RoHS compliant and with lead-free solder processes, it meets international standards for environmental responsibility. Whether for wire-to-board connections or screwless terminal blocks, this plug stack is a dependable choice for your connectivity needs.
