284040-5

AMP284040-5
Heilind Number:AMP284040-5
Manufacturer:TE Connectivity
Manufacturer Number:284040-5
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

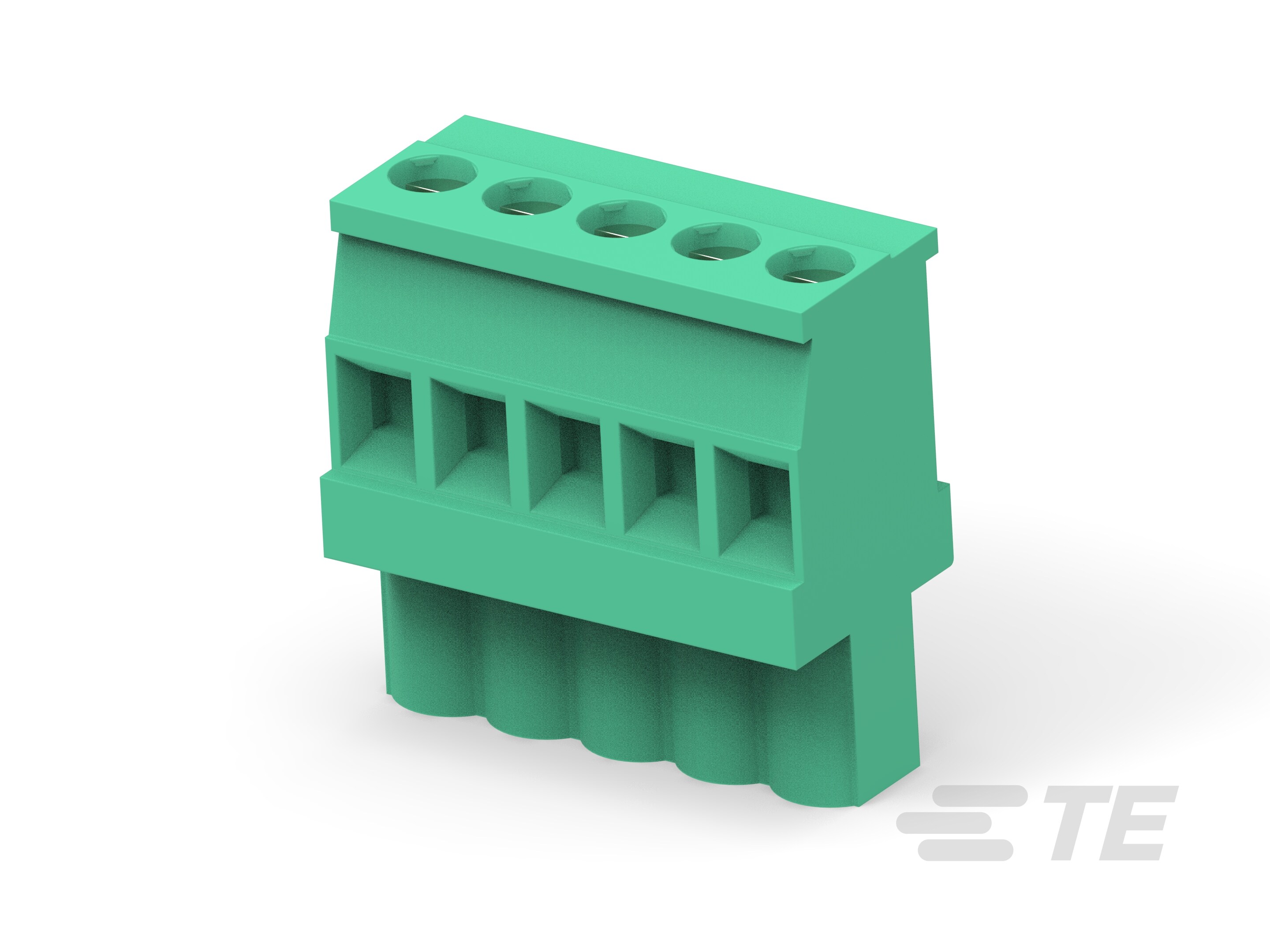

TERMI-BLOK VERTICAL PLUG STACK

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284040-5
Amperage:15 A
Gender:Plug
Housing Material:PA 6/6
Number of Contacts:5
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.197 in, 5 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:Stacking Plug
Screw Size:M3
Package Quantity:150
Contact Amperage:15 A
Number of Positions:5
Housing Color:Green
GPL:124
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Marking Color:White
Screw Flange:Without
Screwless Terminal Block:Yes
Wire Protection:With
Part Aliases:284040-5
SKU:AMP284040-5

Detailed Description

Easily connect power and signal wires with our TERMI-BLOK VERTICAL PLUG STACK. Featuring a sturdy PA 6/6 housing in a vibrant green color, this 5-position, 1-row terminal block is designed for efficient stacking in industrial applications. With a 15A amperage rating and 300V AC voltage, it ensures reliable performance. The phosphor bronze contacts with tin plating guarantee excellent conductivity, while the M3 screw size allows for secure wire termination. Suitable for wire sizes ranging from 12-30 AWG, it offers versatility in installation. RoHS compliant and operating within a wide temperature range of -40 to 105°C, this terminal block is a dependable choice for your connectivity needs. With 150 units per package, it's perfect for bulk installations. Explore our full range of pluggable terminal blocks and headers for complete connectivity solutions.
