284040-9

AMP284040-9
Heilind Number:AMP284040-9
Manufacturer:TE Connectivity
Manufacturer Number:284040-9
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

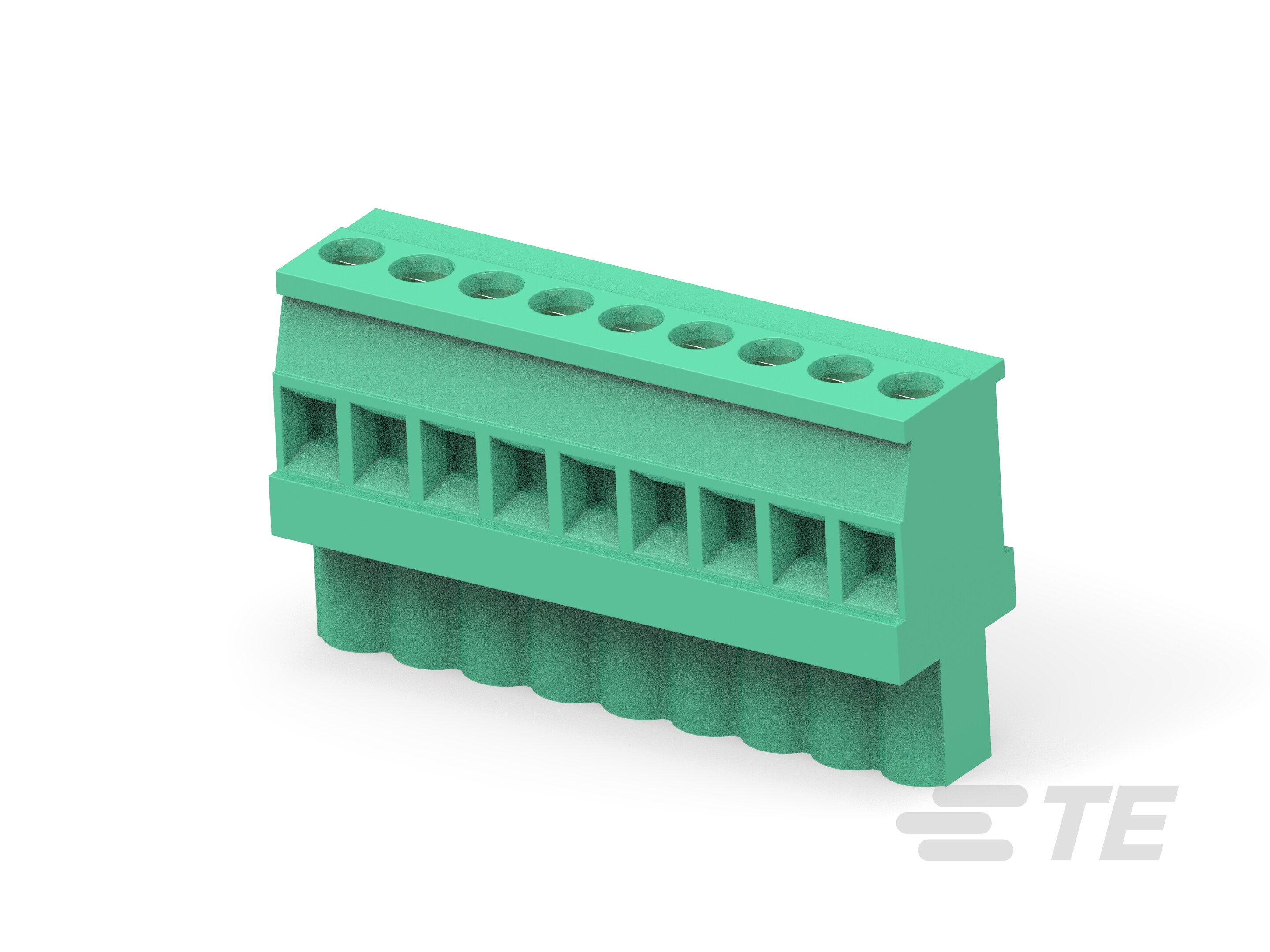

TERMI-BLOK VERTICAL PLUG STACK

More >>

Specifications

AttributeValue
Product Category:
Connectors Terminal Blocks
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284040-9
Amperage:15 A
Gender:Plug
Housing Material:PA 6/6
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.197 in, 5 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:Stacking Plug
Screw Size:M3
Package Quantity:100
Contact Amperage:15 A
Number of Positions:9
Housing Color:Green
GPL:124
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Marking Color:White
Screw Flange:Without
Screwless Terminal Block:Yes
Wire Protection:With
Part Aliases:284040-9
SKU:AMP284040-9

Detailed Description

Elevate your power and signal connections with our TERMI-BLOK VERTICAL PLUG STACK. This high-performance connector features a 15 A amperage, ideal for robust industrial applications. With a durable PA 6/6 housing in a sleek green finish, it provides reliable conductivity in any environment. Its Phosphor Bronze contacts, plated with tin, ensure secure wire termination for 12 - 30 AWG cables. Designed for efficiency, the connector offers a side stackable configuration with M3 screw termination and nickel plating. Operating flawlessly in a wide temperature range from -40 to 105 °C, it's built to withstand even the harshest conditions. RoHS compliant and with 100 units per package, this connector is the perfect choice for your wire-to-board applications. Upgrade now and experience seamless connectivity like never before.
