284507-3

AMP284507-3
Heilind Number:AMP284507-3
Manufacturer:TE Connectivity
Manufacturer Number:284507-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

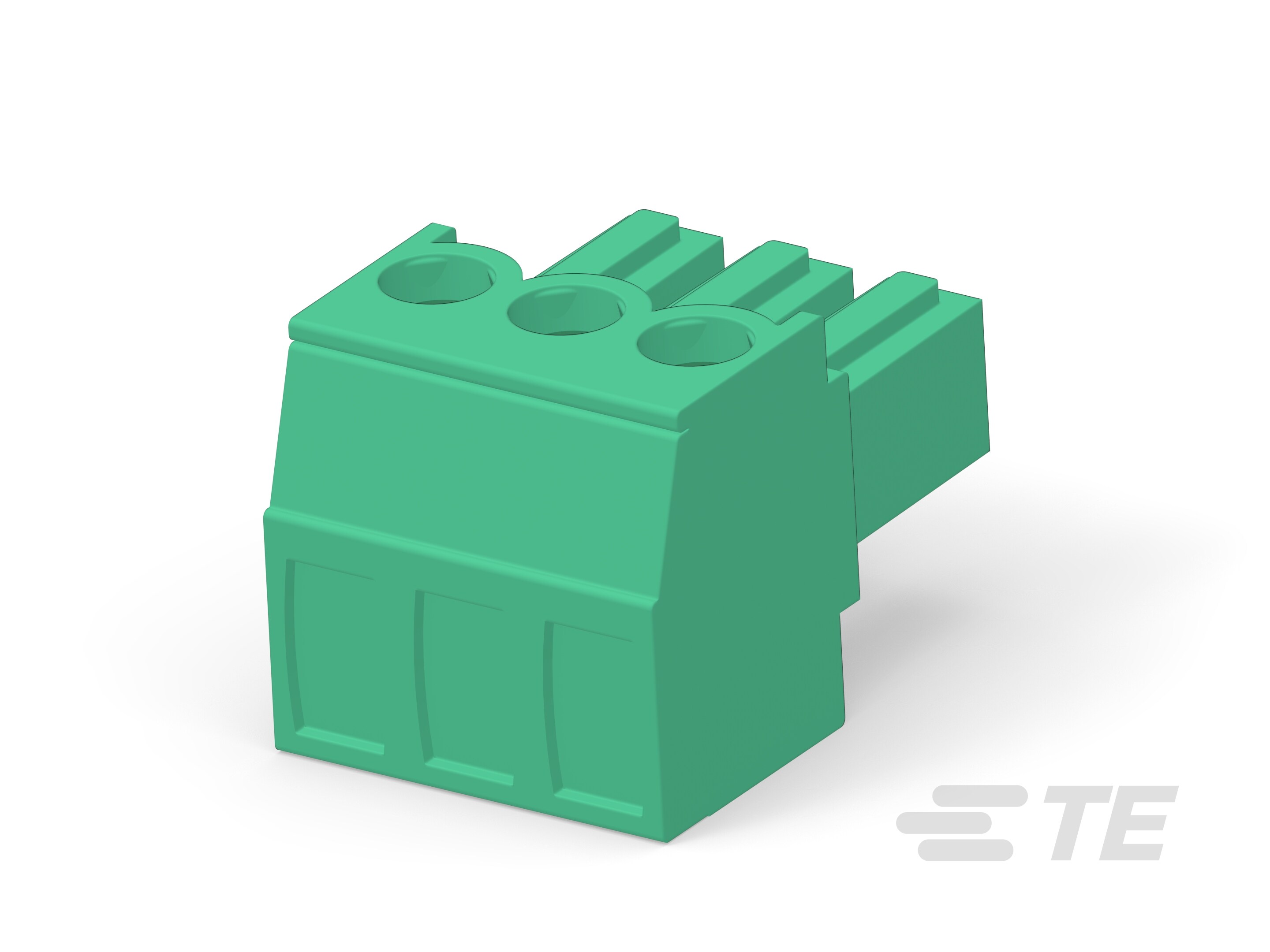

3 POS TERMI-BLOK PLUG STAC 3,8

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284507-3
Amperage:11 A
Gender:Plug
Housing Material:PA 6/6
Number of Contacts:3
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.15 in, 3.81 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:Stacking Plug
Screw Size:M2
Package Quantity:200
Contact Amperage:11 A
Number of Positions:3
Housing Color:Green
GPL:124
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:284507-3
SKU:AMP284507-3

Detailed Description

Power up your connections with this 3-position stacking plug, featuring a sturdy PA 6/6 housing in a vibrant green color. Designed for industrial applications, it ensures reliable performance with a contact amperage of 11 A and contact mating area plating in tin. The right-angle mount angle and side stackable configuration offer versatility in installations, while the wire and cable termination method caters to easy connectivity. With RoHS compliance and an operating temperature range of -40 to 105°C, this plug is a robust solution for power and signal circuit applications. Each package includes 200 pieces, making it ideal for bulk projects.
