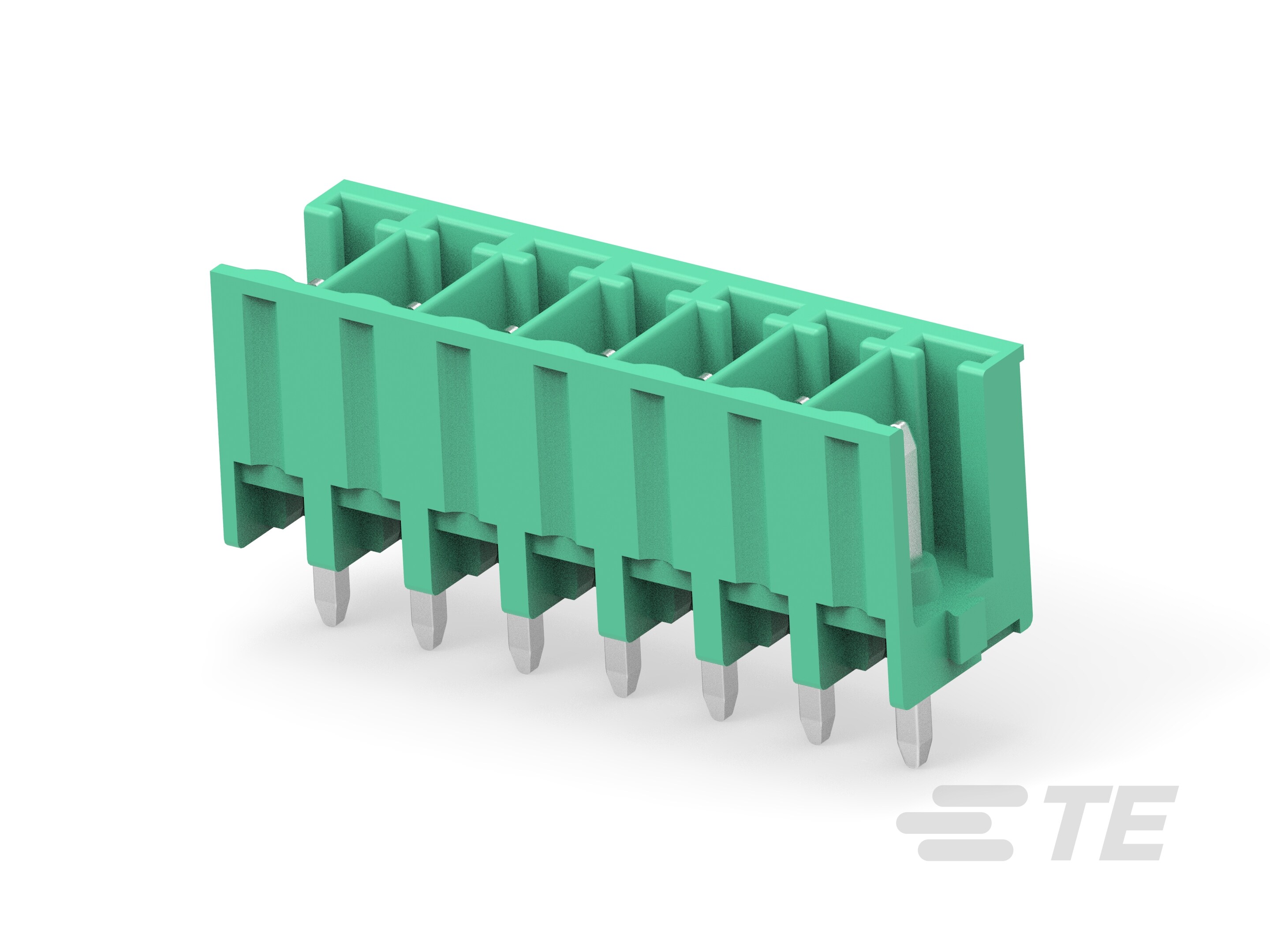

284518-7

Heilind Number:	AMP284518-7
Manufacturer:	TE Connectivity
Manufacturer Number:	284518-7
Datasheet:	Datasheet
ECAD Model:

Description:

7P TERMIBLOK HDR DIR MODULE

More >>

Specifications

Attribute	Value
Product Category:	Connectors Terminal Blocks
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 284518-7
Amperage:	11 A
Gender:	Header
Housing Material:	PA 6/6
Number of Rows:	1
Mount Type:	Board Mount
Contact Material:	Phosphor Bronze
Pitch:	.15 in, 3.81 mm
Voltage:	300 V AC
Mount Angle:	Vertical
Block Type:	PCB Mount
Package Quantity:	100
Contact Amperage:	11 A
Number of Positions:	7
Housing Color:	Green
GPL:	124
Tail Length:	.134 in, 3.4 mm
Packaging:	Box
Operating Temperature Range:	-40 - 105 °C, -40 - 221 °F
Circuit Application:	Power & Signal
Contact Mating Area Plating:	Tin
GPL Description:	Industrial
Connector and Contact Terminate To:	Printed Circuit Board
Product Code:	7744
Wire Size:	.05 - 2 mm², 14 - 30 AWG
Connector System:	Wire to Board
Stacking Configuration:	Side Stackable
ECCN:	EAR99
Header Type:	Shrouded
Interlock:	With
Closed End:	Without
Stacked Levels:	Without
Threaded Flange:	Without
Contact Mount Style:	Through Hole
Mating Angle:	180°
Screw Flange:	Without
Screwless Terminal Block:	No
Part Aliases:	284518-7
SKU:	AMP284518-7

Detailed Description

Elevate your power and signal connections with this high-performance 7-position header. Crafted with durable PA 6/6 housing in a vibrant green hue, it ensures reliable board mounting for industrial applications. The 3.81mm pitch, suitable for wire sizes ranging from 14 to 30 AWG, guarantees seamless connectivity. With a vertical mount angle and through-hole contact style, it offers stability and ease of installation. Operating flawlessly in temperatures from -40 to 105°C, this RoHS-compliant connector is a trusted choice for various projects. Its shrouded header type, featuring an interlock for added security, is ideal for wire-to-board setups. Whether you're a DIY enthusiast or a professional, this header is a must-have component for your terminal block arsenal.
