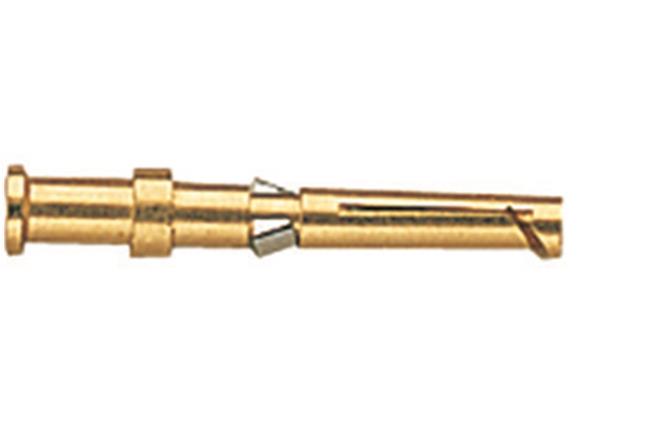

09152006221

HRT09152006221
Heilind Number:HRT09152006221
Manufacturer:HARTING
Manufacturer Number:09152006221
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

HARTING offers a large range of terminations technology for contacts: - Screw terminal - Crimp terminal - Axial screw terminal - Cage-clamp terminal - IDC (Insulation displacement terminal) - Han-Quick Lock® termination technique

More >>

Specifications

AttributeValue
Product Category:
Crimp Wire Housings & Contacts Crimp Wire Contacts
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09152006221
Gender:Female
Series:Han D® HMC
Wire Size:16 AWG
Mating Cycles:10000 cycle
Contact Design:Machined
Current Rating:10 A
Contact Plating:Gold
Contact Material:Copper Alloy
Stripping Length:8 mm
Contact Resistance:3 mΩ
Termination Method:Crimp
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-40 °C
SKU:HRT09152006221

Detailed Description

Introducing the HARTING 09152006221, a high-performance crimp contact designed for the Han D® HMC series. This female contact features a 1.5 MM2 wire size, making it ideal for a wide range of applications. Crafted from durable copper alloy with gold plating, it ensures reliable conductivity even in harsh environments. With a current rating of 10 A and a low contact resistance of 3 mΩ, it guarantees efficient power transmission. Its machined design and 10000 mating cycles offer long-lasting durability. RoHS compliant and suitable for use in temperatures ranging from -40 °C to 125 °C, this contact is not only reliable but also environmentally friendly. Perfect for use in hi-rel connectors, it is a crucial component in any connectivity solution.
