09242206850

HRT09242206850
Heilind Number:HRT09242206850
Manufacturer:HARTING
Manufacturer Number:09242206850
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

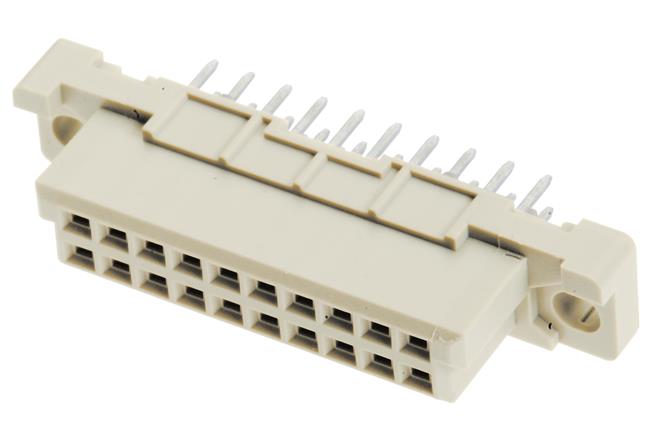

DIN 41612, Type 3B, Connector; Female connector; Thermoplastic resin, glass-fibre filled; Motherboard to daughtercard, Mezzanine; Press-in termination

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09242206850
Color:Pebble Gray
Series:DIN 41612
Gender:Female
Housing Material:Glass-Filled Plastic
Number of Contacts:20
Number of Rows:2
Termination Method:Press-Fit
Contact Material:Copper Alloy
Contact Plating:Nickel, Noble Metal Over Nickel
Maximum Operating Temperature:105 °C
Minimum Operating Temperature:-40 °C
Pitch:2.54 mm
Mount Angle:Straight
Tail Length:4.5 mm
Mating Cycles:400 cycle
Flammability Rating:UL 94V-0
Current Rating:2 A
Voltage Rating:1 kV
SKU:HRT09242206850

Detailed Description

Introducing the DIN 41612 Type 3B Female Connector, designed for seamless motherboard to daughtercard connectivity in mezzanine applications. Constructed with durable thermoplastic resin and glass-fibre filling, this pebble gray connector ensures reliable performance in a range of environments. Featuring press-in termination for easy installation, it boasts 20 contacts in 2 rows with a 2.54mm pitch. The copper alloy contacts plated with nickel and noble metal guarantee excellent conductivity, while the UL 94V-0 flammability rating ensures safety. With a maximum operating temperature of 105°C and a minimum of -40°C, it is suitable for diverse industrial settings. RoHS compliant and capable of handling 2A of current at 1kV, this DIN connector is a dependable choice for high-quality board-to-board PCB connections.
