171-037-203L001

$TEX171_037_203L001$

Heilind Number:	TEX171-037-203L001
Manufacturer:	NorComp
Manufacturer Number:	171-037-203L001
Datasheet:	Datasheet
ECAD Model:

Description:

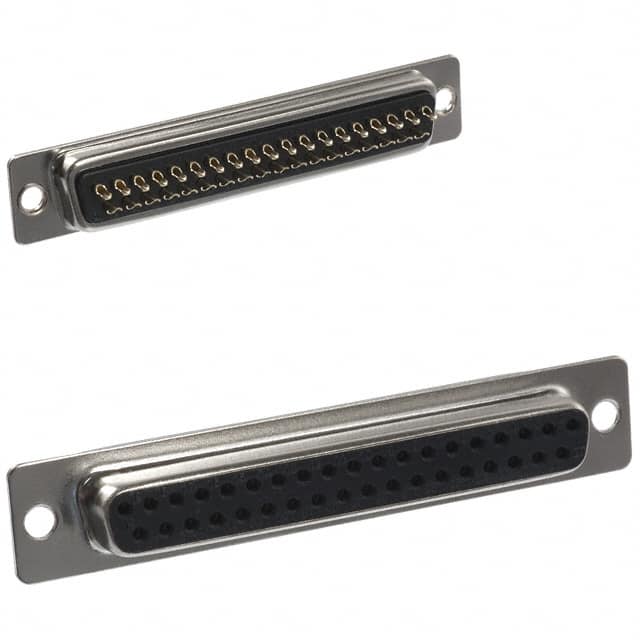

Female D-Sub 37 Position Straight Solder Cup

More >>

Specifications

Attribute	Value
Product Category:	D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:	NorComp
Manufacturer Part Number:	NorComp 171-037-203L001
Gender:	Receptacle
Series:	171
Shell Finish:	Nickel Plated
Current Rating:	5 A
Shell Material:	Steel
Termination Method:	Solder Cup
Number of Positions:	37
Maximum Operating Temperature:	125 °C
Minimum Operating Temperature:	-50 °C
Mount Angle:	Straight
Voltage Rating:	250 VAC
Contact Plating:	Gold Flash
Signal Wire Size:	20-28 AWG
SKU:	TEX171-037-203L001

Detailed Description

Introducing the 171-037-203L001, a Female D-Sub 37 Position Straight Solder Cup connector designed for reliable and efficient signal transmission. Featuring a durable steel shell with nickel plating, this receptacle ensures longevity in any application. The gold flash contact plating guarantees optimal conductivity, while the solder cup termination method allows for secure wire attachment. With a wide operating temperature range of -50°C to 125°C, it is suitable for use in various environments. Rated for 5A at 250VAC, this connector is RoHS compliant and perfect for high-performance industrial and commercial systems. Upgrade your connectivity with the 171-037-203L001.
