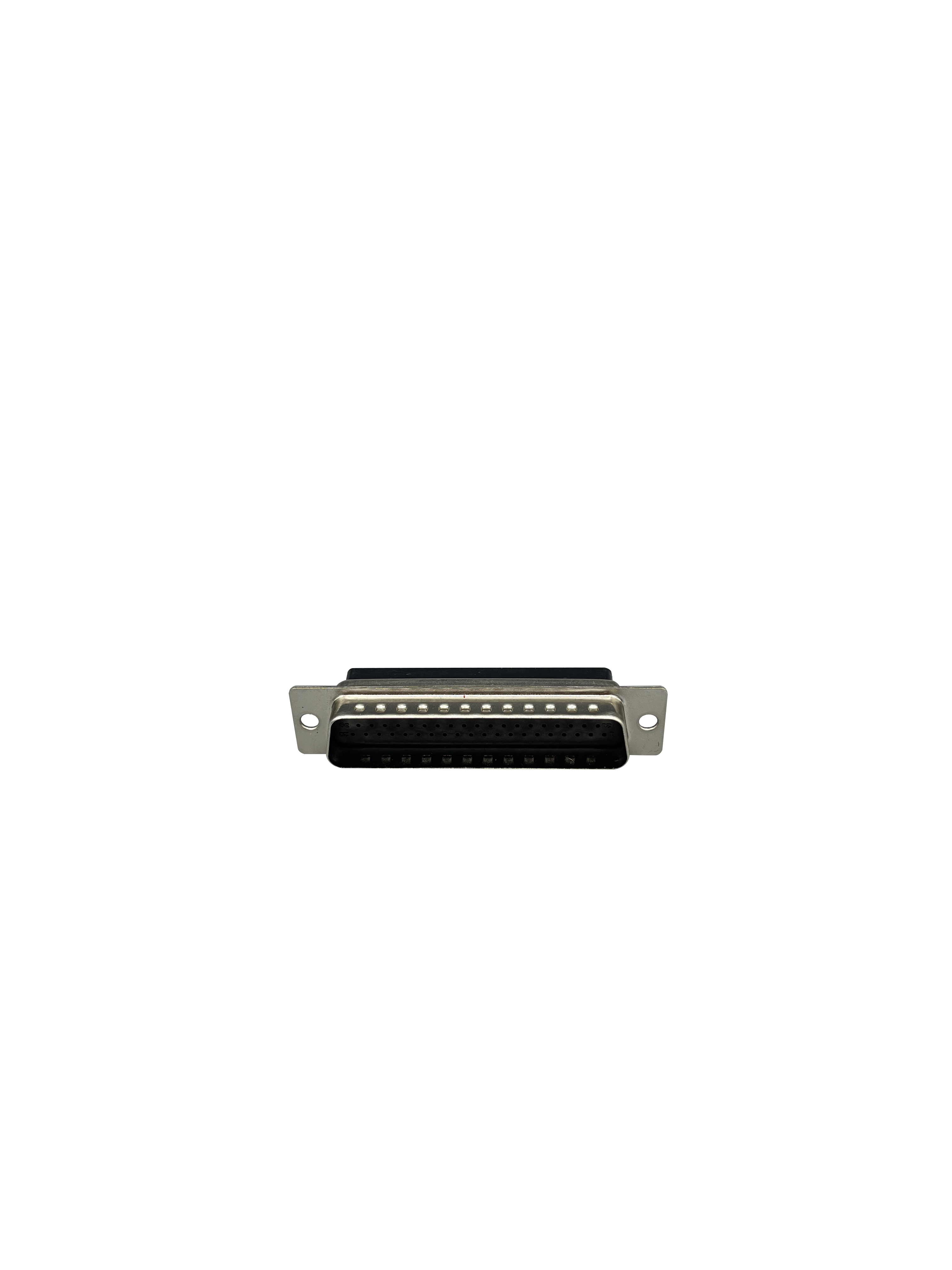

180-078-173L000

TEX180_078_173L000
Heilind Number:TEX180-078-173L000
Manufacturer:NorComp
Manufacturer Number:180-078-173L000
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Male High-Density D-Sub 78 Position Straight Crimp and Poke

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 180-078-173L000
Gender:Plug
Series:180
Mount Angle:Straight
Shell Finish:Nickel Plated
Current Rating:3 A
Shell Material:Steel
Signal Wire Size:24-26 AWG
Termination Method:Crimp
Number of Positions:78
Maximum Operating Temperature:100 °C
Minimum Operating Temperature:-50 °C
SKU:TEX180-078-173L000

Detailed Description

Introducing the 180-078-173L000, a high-density D-Sub 78 Position Straight Crimp and Poke connector designed for male plugs. With a steel shell material and nickel plated finish, this connector ensures durability and reliable performance. Operating at temperatures ranging from -50°C to 100°C, it is suitable for a wide range of environments. The crimp termination method and 24-26 AWG signal wire size make it easy to install and connect. RoHS compliant and rated for a 3A current, this connector is not only efficient but also environmentally friendly. Perfect for applications in connectors, IO connectors, and more, the 180-078-173L000 is a versatile and essential component for your connectivity needs.
