2307184-3

AMP2307184-3
Heilind Number:AMP2307184-3
Manufacturer:TE Connectivity
Manufacturer Number:2307184-3
Datasheet:Drawing
ECAD Model:
3D Model

Description:

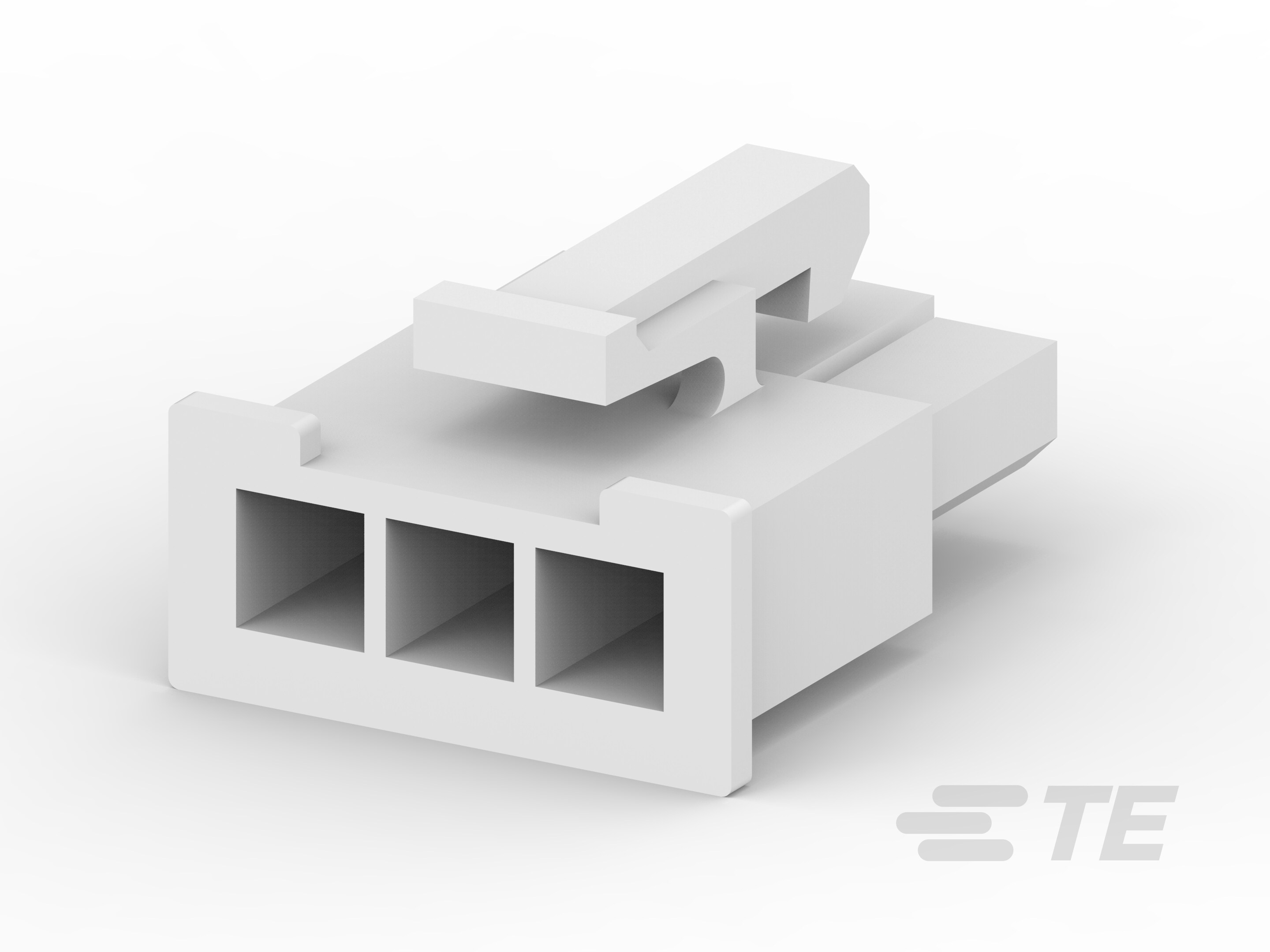

3P PLUG SR VAL-U-LOK PM GW - TPA VERSION

More >>

Specifications

AttributeValue
Product Category:
Connectors Power Connectors
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2307184-3
Housing Material:Nylon
Number of Rows:1
Mount Type:Panel
Termination Method:Crimp
Pitch:.165 in, 4.2 mm
Voltage:600 V AC
Contact Type:Pin
Package Quantity:1000
Cable Type:Discrete Wire
Number of Positions:3
Housing Color:White
GPL:G31
Packaging:Bag/Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Signal
Connector Height:.291 in, 7.4 mm
Sealable:No
GPL Description:Appliances
Connector and Contact Terminate To:Wire & Cable
Product Code:K924
Number of Signal Positions:3
Connector Length:13.8 mm, .543 in
Connector System:Wire to Wire
CSA Agency Certification:208567
Connector Product Type:Housing
ECCN:EAR99
Connector Width:23.9 mm, .94 in
Accepts Wire Insulation Diameter:.047 - .122 in, 1.2 - 3.1 mm
Contact Retention:Without
Glow Wire Rating:GWT 750°C (Without Flame)
Circuit Identification Feature:With
Connector and Housing Type:Plug
Standards Met:UL CSA
Material Flammability Standard:UL 94V-2
Part Aliases:2307184-3
SKU:AMP2307184-3

Detailed Description

Meet stringent UL and CSA standards with our durable nylon housing connector, perfect for panel mounting. Featuring a single row design with crimp termination, this connector is ideal for discrete wire applications. With a pitch of 4.2mm and a maximum voltage rating of 600V AC, it ensures reliable signal transmission. The white housing color and compact size make it suitable for a variety of appliances. Operating in a wide temperature range from -40 to 105°C, it is highly versatile. Each package includes 1000 connectors, meeting the needs of various projects. With a flammability standard of UL 94V-2 and RoHS compliance, it guarantees safety and environmental responsibility. Perfect for wire-to-wire applications, this connector is a essential component in power and signal transmission systems.
