2309408-1

AMP2309408-1
Heilind Number:AMP2309408-1
Manufacturer:TE Connectivity
Manufacturer Number:2309408-1
Datasheet:Drawing
ECAD Model:
3D Model

Description:

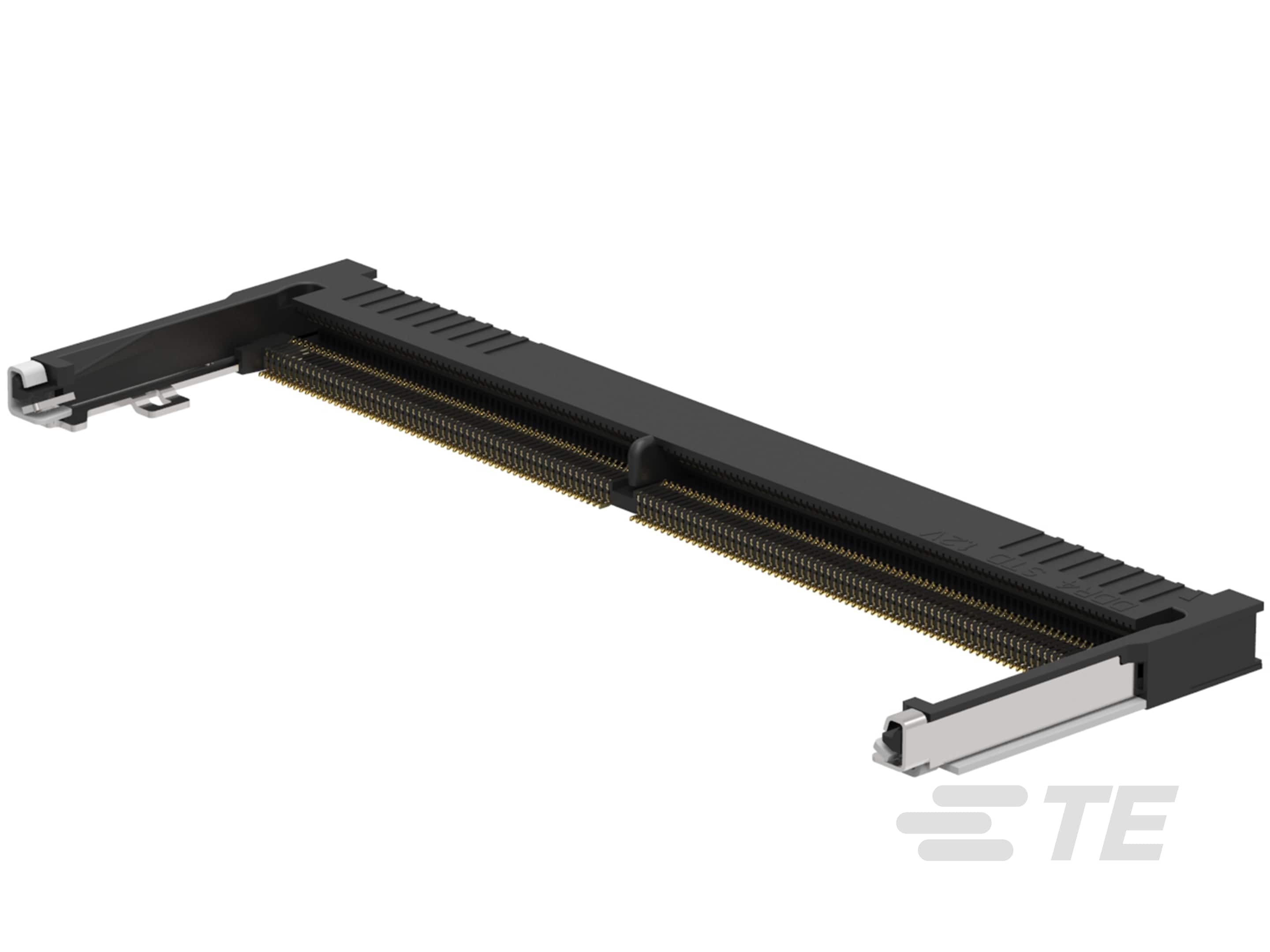

DDR4 SODIMM 260P 4.0H RVS

More >>

Specifications

AttributeValue
Product Category:
Memory Sockets & Connectors DIMM & SIMM Memory Sockets
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2309408-1
Series:DDR4 DIMM
Housing Material:High Temperature Thermoplastic
Number of Rows:2
Mount Type:Board Mount
Contact Material:Copper Alloy
Pitch:.0197 in, 5 mm
Voltage:1.2 V
Socket Type:Memory Card
Row Spacing:.322 in, 8.2 mm
Keying:Reverse
Package Quantity:900
Latch Material:High Temperature Thermoplastic
Contact Amperage:.5 A
Number of Positions:260
Housing Color:Black
GPL:053
Profile:Low
Packaging:Tape & Reel
Operating Temperature Range:-55 - 85 °C, -67 - 185 °F
Circuit Application:Power
Contact Mating Area Plating:Gold Flash
PCB Retention:With
PCB Contact Termination Area Plating:Gold Flash
PCB Retention Type:Solder Peg
Sealable:No
GPL Description:Data and Devices
Connector and Contact Terminate To:Printed Circuit Board
Product Code:L540
Connector System:Cable-to-Board
ECCN:EAR99
Stack Height:.157 in, 4 mm
Ejector Type:Locking
PCB Mounting Style:Surface Mount
Ejector Location:Both Ends
Center Key:Offset Right
Center Post:Without
DRAM Type:Small Outline (SO)
Insertion Style:Cam-In
Socket Style:SO DIMM
Module Orientation:Right Angle
Retention Post Location:Both Ends
Material Flammability Standard:UL 94V-0
Part Aliases:2309408-1
SKU:AMP2309408-1

Detailed Description

Enhance your memory module with our DDR4 SODIMM 260P 4.0H RVS. This high-performance component, featuring a low profile and reverse keying, is designed for seamless board mount integration. With a voltage of 1.2V and gold flash plating, it ensures reliable power delivery. Operating in a wide temperature range from -55 to 85°C, this connector is perfect for demanding environments. Compliant with RoHS standards, it guarantees environmentally friendly assembly. Whether for industrial or consumer electronics, this black housing connector, with a packaging quantity of 900, offers a high-quality solution for your application needs.
