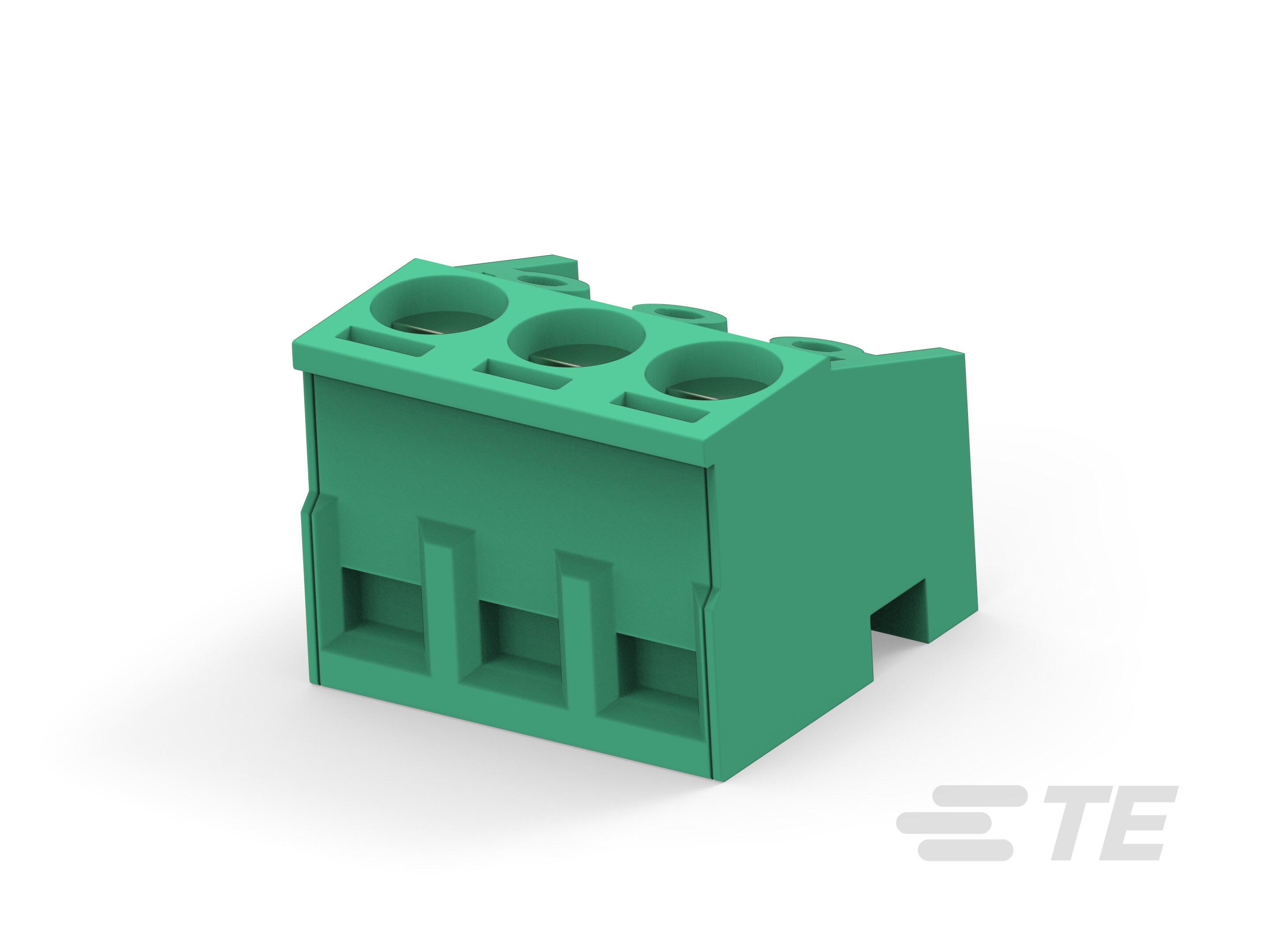

282830-3

AMP282830-3
Heilind Number:AMP282830-3
Manufacturer:TE Connectivity
Manufacturer Number:282830-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

TERMI-BLOK PLUG 90&180 3P. 5

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 282830-3
Amperage:12 A
Gender:Plug
Housing Material:PA 6/6
Number of Contacts:3
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.197 in, 5 mm
Voltage:300 V AC
Mount Angle:Right Angle, Vertical
Block Type:Special Plug
Screw Size:M3
Package Quantity:200
Contact Amperage:12 A
Number of Positions:3
Housing Color:Green
GPL:124
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 2 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Marking Color:Black
Mating Angle:90°(Bottom)/ 180° (Side)
Screw Flange:Without
Screwless Terminal Block:Yes
Wire Protection:With
Part Aliases:282830-3
SKU:AMP282830-3

Detailed Description

Introducing our TERMI-BLOK PLUG, a versatile 3-position connector designed for efficient power and signal transmission. With a sturdy PA 6/6 housing in a sleek green hue, this plug boasts durable construction for reliable performance. Featuring phosphor bronze contacts with tin plating, it ensures excellent conductivity. Its 90° and 180° mating angles offer flexibility in installation, while the wire-to-board connector system allows for easy integration. Rated for 12 A and 300 V AC, with an operating temperature range of -40 to 105 °C (-40 to 221 °F), this plug is suitable for a wide range of industrial applications. RoHS compliant and lead-free solder capable, it meets stringent environmental standards. Whether for power or signal transmission, the TERMI-BLOK PLUG is the perfect solution for your connectivity needs.
