680S7W2103L401

$TEX680S7W2103L401$

Heilind Number:	TEX680S7W2103L401
Manufacturer:	NorComp
Manufacturer Number:	680S7W2103L401
Datasheet:	Datasheet
ECAD Model:

Description:

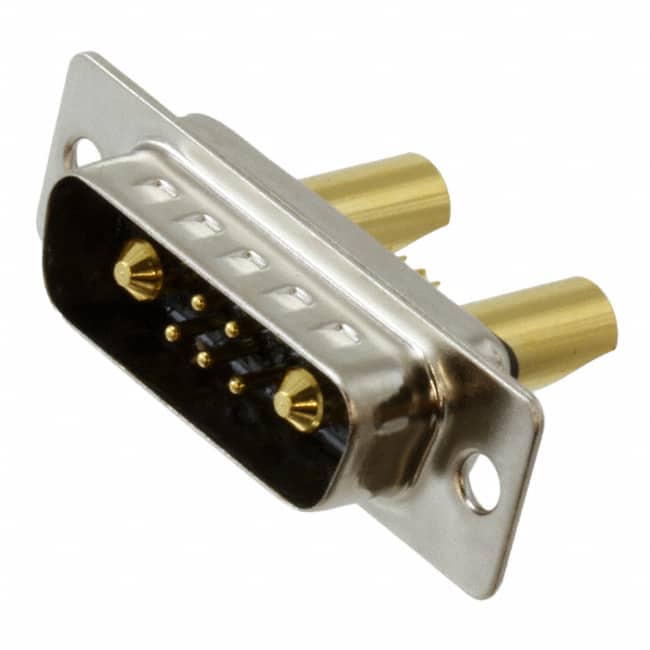

IP67 Male Mixed Contact D-Sub 7W2 Position Straight Solder Cup

More >>

Specifications

Attribute	Value
Product Category:	D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:	NorComp
Manufacturer Part Number:	NorComp 680S7W2103L401
Gender:	Plug
Series:	680S POWER-D
Mount Angle:	Straight
Shell Finish:	Nickel Plated
Current Rating:	40 A, 5 A
Shell Material:	Steel
Voltage Rating:	300 VAC
Contact Plating:	Gold Flash
Power Wire Size:	8 AWG
Termination Method:	Solder Cup
Number of Positions:	7 (5 Signal, 2 Power)
Signal Wire Size:	20 AWG
SKU:	TEX680S7W2103L401

Detailed Description

The 680S7W2103L401 is a rugged IP67-rated Male Mixed Contact D-Sub connector, part of the 680S POWER-D series. Designed for harsh environments, this straight solder cup plug features 7 positions, including 5 signal and 2 power contacts. With gold flash contact plating, it ensures reliable conductivity. Constructed with a steel shell and nickel plating, it offers durability and corrosion resistance. The connector supports 20 AWG signal and 8 AWG power wire sizes, with a current rating of 40A for power and 5A for signal transmission. Meeting strict quality standards, it is ideal for industrial applications requiring secure and high-performance connections.
