284512-4

AMP284512-4
Heilind Number:AMP284512-4
Manufacturer:TE Connectivity
Manufacturer Number:284512-4
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

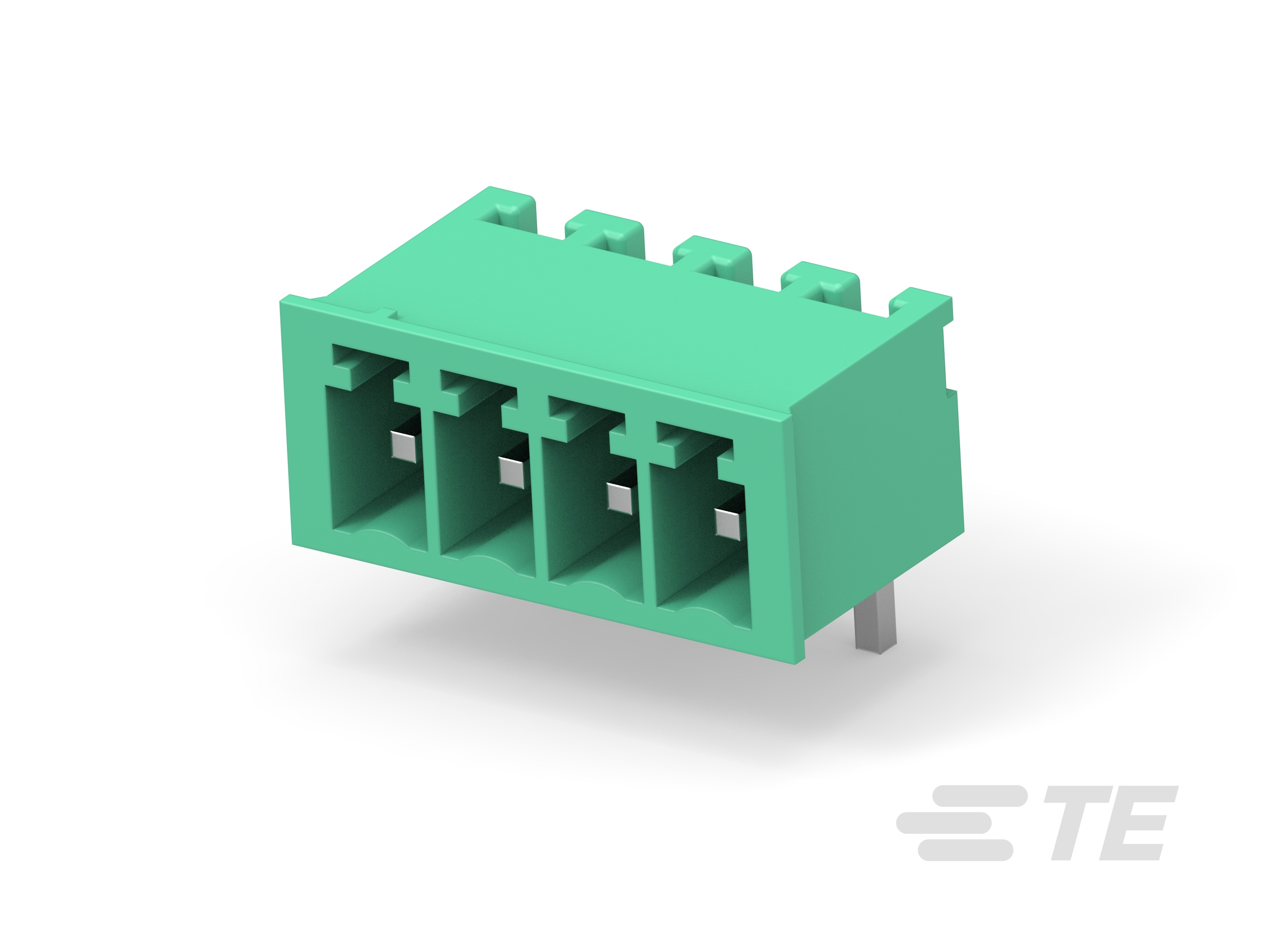

4 POS TERMI-BLOK HDR 900 POLAR

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284512-4
Amperage:11 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:4
Number of Rows:1
Mount Type:Board Mount
Contact Material:Phosphor Bronze
Pitch:.138 in, 3.5 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:PCB Mount
Package Quantity:150
Contact Amperage:11 A
Number of Positions:4
Housing Color:Green
GPL:124
Tail Length:.134 in, 3.4 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
ECCN:EAR99
Header Type:Shrouded
Interlock:Without
Closed End:With
Threaded Flange:Without
Contact Mount Style:Through Hole
Mating Angle:90°
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:284512-4
SKU:AMP284512-4

Detailed Description

Easily connect power and signal cables with this 4-position header, designed for efficient board mounting. With a 3.5mm pitch and right-angle mount, it offers secure and space-saving connections. The housing, made of durable PA 6/6 in a vibrant green color, ensures longevity and easy identification. Featuring tin-plated phosphor bronze contacts, it guarantees reliable conductivity in industrial environments. With an amperage rating of 11A and a voltage tolerance of 300V AC, it's suitable for various applications. Wave solder capable and RoHS compliant, it meets high-quality standards while accommodating wire sizes from 14 to 30 AWG. Enjoy efficient and compliant wire-to-board connectivity with this terminal block header.
