796634-8

AMP796634-8
Heilind Number:AMP796634-8
Manufacturer:TE Connectivity
Manufacturer Number:796634-8
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

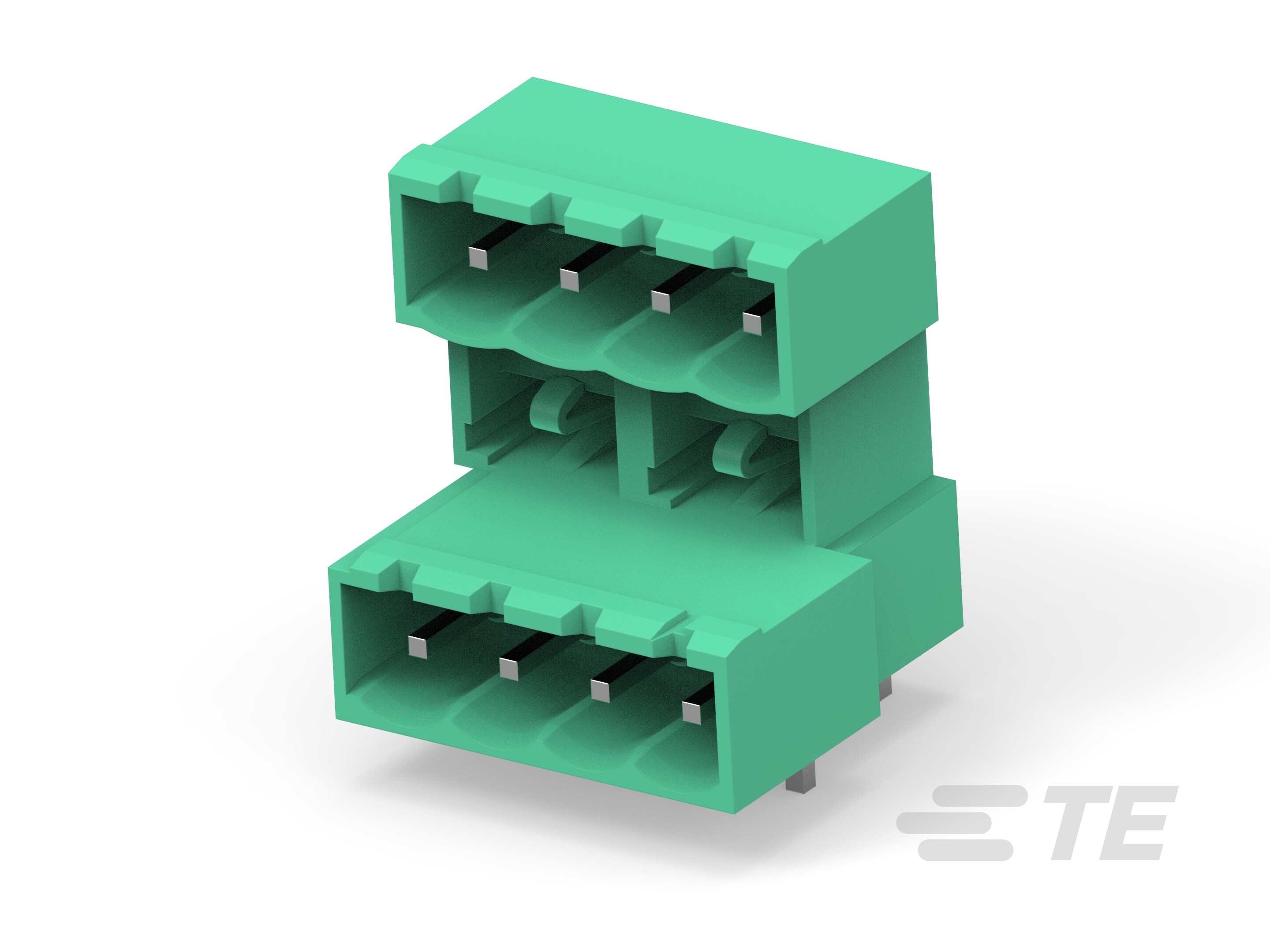

8 POS 5.08MM R/A PLUG,TRM BLK

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 796634-8
Amperage:15 A
Gender:Plug
Housing Material:PA 6/6
Number of Contacts:8
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:Stacking Plug
Screw Size:M3
Package Quantity:100
Contact Amperage:15 A
Number of Positions:8
Housing Color:Green
GPL:124
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Entry Angle:Side
Interlock:Without
Stacked Levels:With
Contact Mount Style:Through Hole
Mating Angle:180°
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:796634-8
SKU:AMP796634-8

Detailed Description

Easily connect power and signal wires with our Stacking Plug Terminal Block. Featuring a durable PA 6/6 housing in a vibrant green color, this right-angle mountable connector is ideal for industrial applications. With 8 contacts and a pitch of 5.08 mm (.2 in), it offers secure wire termination for 12-30 AWG (.05-3 mm²) cables. The phosphor bronze contact material with tin plating ensures reliable conductivity, while the brass screws with nickel plating provide sturdy assembly. Operating in a wide temperature range from -40 to 105°C (-40 to 221°F), this RoHS-compliant terminal block is suitable for various environments. Whether you're stacking multiple levels or connecting wires in tight spaces, this connector offers versatility and performance. With a package quantity of 100, it's perfect for bulk installations. Upgrade your wire-to-board connections with our high-quality Stacking Plug Terminal Block.
