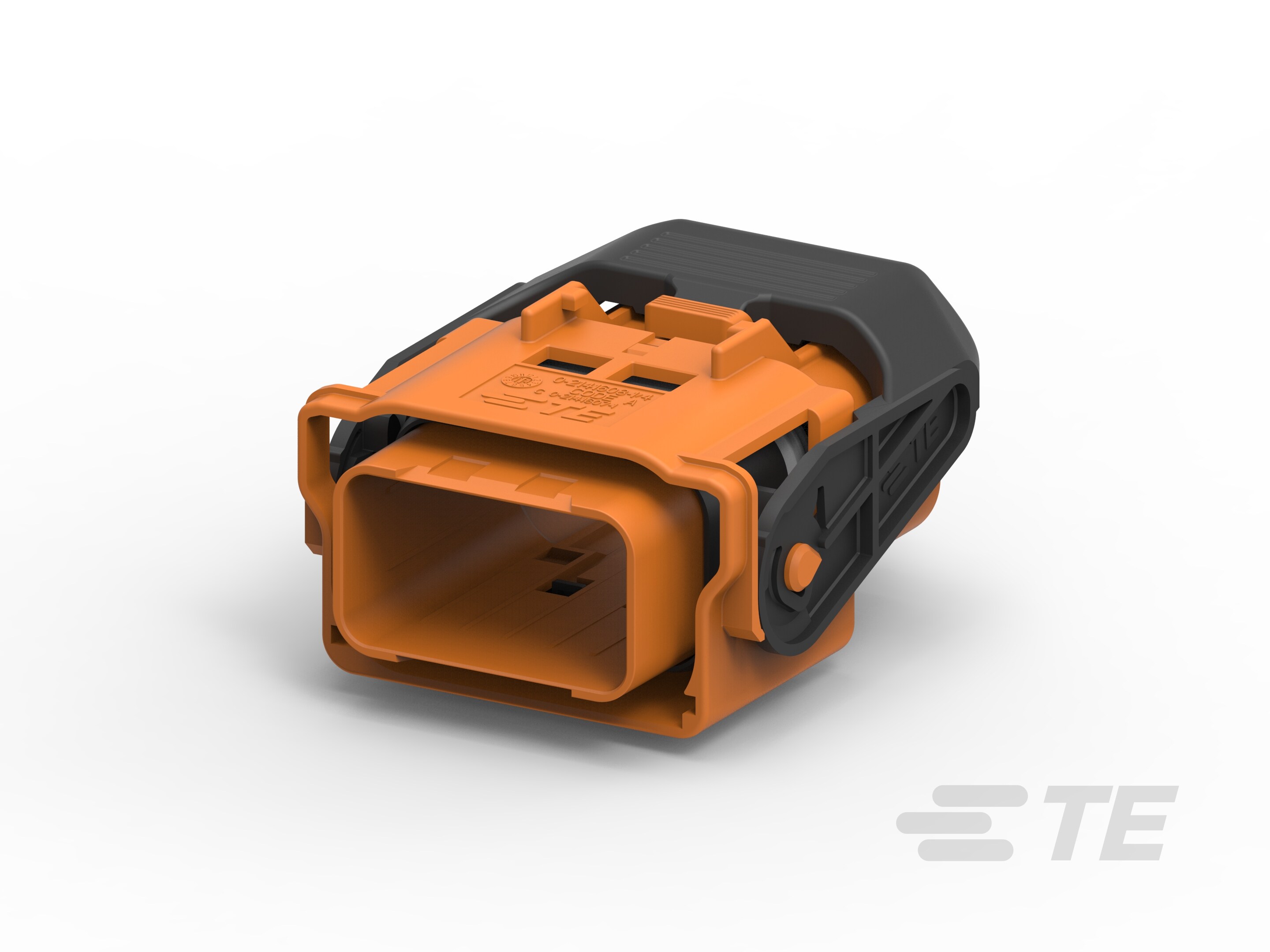

2141608-1

AMP2141608-1
Heilind Number:AMP2141608-1
Manufacturer:TE Connectivity
Manufacturer Number:2141608-1
Datasheet:Drawing
ECAD Model:
3D Model

Description:

5POS,AMP MCP6.3/4.8K,REC HSG,A

More >>

Specifications

AttributeValue
Product Category:
Automotive Connectors & Accessories Automotive Connector Accessories
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 2141608-1
Series:HVA 630
Gender:Housing for male terminals
Number of Rows:2
Pitch:.24 in, 6.3 mm
Voltage:850 V DC
IP Rating:IP4K9K
Strain Relief:Yes
Row Spacing:.248 in, 6.3 mm
Polarization:Yes
Body Material:PA GF
Number of Positions:5
GPL:K28
Packaging:Box
Operating Temperature Range:-40 - 140 °C, -40 - 284 °F
Circuit Application:Power
Sealable:Yes
GPL Description:Automotive
Product Code:J712
Length:2.88 in
Cable Exit Angle:180°
Height:1.54 in, 39.3 mm
Width:2.5 in, 63.5 mm
Mating Tab Width:.248 in, 6.3 mm
Nominal Voltage Architecture:125 V, 12 V, 240 V, 24 V, 42 V, 48 V, 500 V, 550 V, 600 V, 80 V, 90 V
Body Color:Black
Serviceable:No
Connector Code :A
Mounting Feature:Without
Terminal Position Assurance:Yes
Connector Position Assurance Capable:No
Hybrid Connector :Yes
Primary Locking Feature:Integrated in Housing
Part Aliases:2141608-1
SKU:AMP2141608-1

Detailed Description

Introducing the HVA 630 series, a versatile housing designed for male terminals in automotive applications. With two rows, a pitch of 6.3mm (.24 in), and a voltage rating of 850V DC, this housing ensures reliable power connectivity. Featuring IP4K9K ingress protection, it offers durability in harsh environments. The integrated strain relief and polarization features enhance ease of use and secure connections. Made with PA GF body material, it guarantees robustness. With five positions and a 180° cable exit angle, it accommodates various requirements. Operating temperature range from -40 to 140°C (-40 to 284°F) and compatibility with lead-free solder processes make it suitable for diverse assembly needs. This automotive connector accessory, with its black housing and compact dimensions of 2.88" x 1.54" x 2.5", is a dependable solution for power circuit applications.
