172-E25-113R021

TEX172_E25_113R021
Heilind Number:TEX172-E25-113R021
Manufacturer:NorComp
Manufacturer Number:172-E25-113R021
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

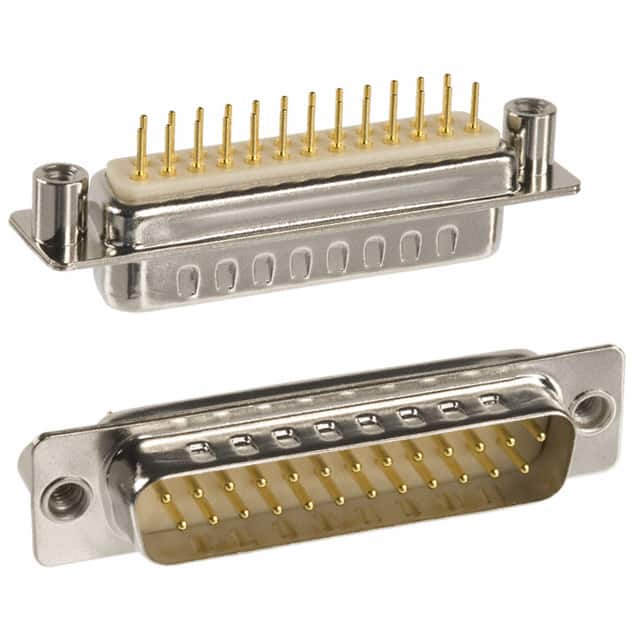

Male D-Sub 25 Position Straight PCB Dip Solder

More >>

Specifications

AttributeValue
Product Category:
D-Sub & D-Ribbon Connectors & Accessories D-Sub Connectors
Manufacturer:NorComp
Manufacturer Part Number:NorComp 172-E25-113R021
Gender:Plug
Series:172-E
Mount Angle:Straight
Shell Finish:Nickel Plated
Current Rating:5 A
Shell Material:Steel
Contact Plating:Gold Flash
Termination Method:Solder
Number of Positions:25
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Voltage Rating:250 VAC
SKU:TEX172-E25-113R021

Detailed Description

Introducing the 172-E25-113R021, a high-performance Male D-Sub 25 Position Straight PCB Dip Solder connector from our M SERIES. Designed for rugged reliability, this plug features Gold Flash contact plating for optimal conductivity and durability. With a wide operating temperature range of -55°C to 125°C, it ensures seamless performance in various environments. Its straight mount angle and steel shell with Nickel Plated finish provide secure and stable connections. RoHS compliant and rated for 5A current and 250VAC voltage, this connector is ideal for demanding applications in industrial and commercial settings. Trust the 172-E25-113R021 for superior connectivity and performance.
