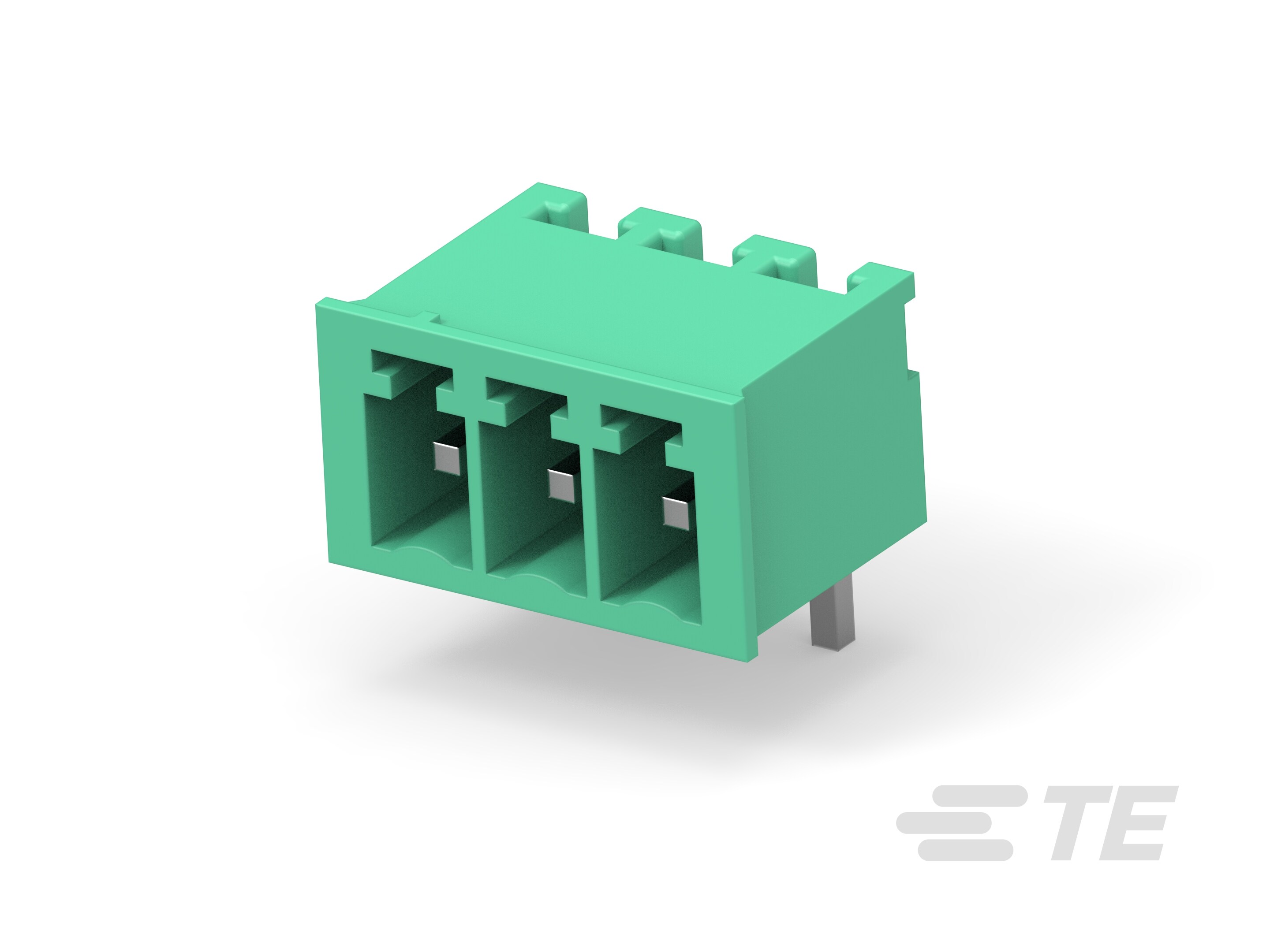

284512-3

AMP284512-3
Heilind Number:AMP284512-3
Manufacturer:TE Connectivity
Manufacturer Number:284512-3
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

3 POS TERMI-BLOK HDR 900 POLAR

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 284512-3
Amperage:11 A
Gender:Header
Housing Material:PA 6/6
Number of Contacts:3
Number of Rows:1
Mount Type:Board Mount
Contact Material:Phosphor Bronze
Pitch:.138 in, 3.5 mm
Voltage:300 V AC
Mount Angle:Right Angle
Block Type:PCB Mount
Package Quantity:200
Contact Amperage:11 A
Number of Positions:3
Housing Color:Green
GPL:124
Tail Length:.134 in, 3.4 mm
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Printed Circuit Board
Product Code:7744
Wire Size:.05 - 2 mm², 14 - 30 AWG
Connector System:Wire to Board
ECCN:EAR99
Header Type:Shrouded
Interlock:Without
Closed End:With
Threaded Flange:Without
Contact Mount Style:Through Hole
Mating Angle:90°
Screw Flange:Without
Screwless Terminal Block:No
Part Aliases:284512-3
SKU:AMP284512-3

Detailed Description

Easily connect power and signal wires to your printed circuit board with this 3-position header. Designed for board mount installation, it features a right-angle mount angle and green PA 6/6 housing. With a current rating of 11 A and voltage rating of 300 V AC, it's suitable for industrial applications. The contacts are made of phosphor bronze with tin plating, ensuring reliable conductivity. Operating in temperatures ranging from -40 to 105 °C, this header is RoHS compliant and lead-free solder capable. Ideal for wire sizes from 14 to 30 AWG, it offers a secure and efficient Wire to Board connection solution. With 200 pieces per package, it's perfect for large-scale projects.
