1801177-3

AMP1801177-3
Heilind Number:AMP1801177-3
Manufacturer:TE Connectivity
Manufacturer Number:1801177-3
Datasheet:Drawing
ECAD Model:
3D Model

Description:

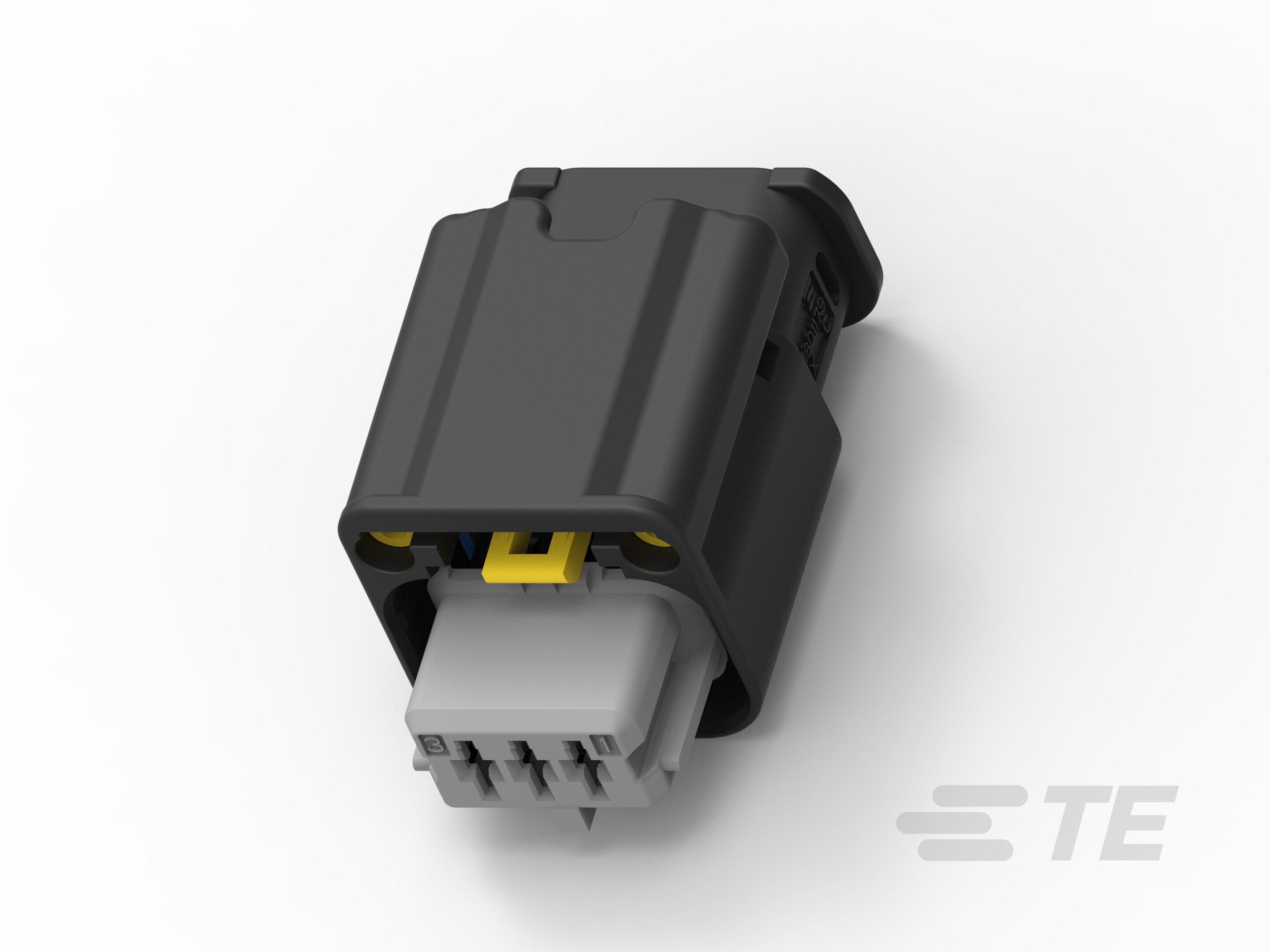

3W TAB CONNECTOR HP GREY

More >>

Specifications

AttributeValue
Product Category:
Automotive Connectors & Accessories Automotive Connector Accessories
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1801177-3
Series:Sensor Flat Contact System
Gender:Housing for male terminals
Number of Rows:1
Pitch:.131 in, 3.33 mm
Voltage:16 V DC
IP Rating:IP69K
Strain Relief:Add By Accessory
Polarization:Yes
Body Material:PBT GF
Number of Positions:3
GPL:N76
Operating Temperature Range:-40 - 150 °C, -40 - 302 °F
Circuit Application:Signal
Sealable:Yes
GPL Description:Automotive
Product Code:M088
Connector System:Wire to Wire
Length:.816 in
Cable Exit Angle:180°
Height:17.6 mm, .693 in
Width:2.197 in, 55.8 mm
Mating Tab Width:.025 in, .059 in, 1.5 mm, .64 mm
Nominal Voltage Architecture:12 V
Body Color:Gray
Serviceable:Yes
Mounting Feature:Without
Terminal Position Assurance:Yes
Connector Position Assurance Capable:No
Hybrid Connector :No
Primary Locking Feature:Integrated in Housing
Material Flammability Standard:UL 94-HB
Part Aliases:1801177-3
SKU:AMP1801177-3

Detailed Description

Introducing our Sensor Flat Contact System, an essential component for automotive connectivity. This housing, designed for male terminals, features a single row layout with a 3.33 mm pitch, ensuring precise signal transmission. With a voltage rating of 16 VDC and IP69K ingress protection, it guarantees reliable performance even in harsh environments. Constructed from durable PBT GF material and compliant with UL 94-HB flammability standards, it prioritizes safety and longevity. Its 180° cable exit angle and compact dimensions make it easy to integrate, while the integrated primary locking feature ensures secure connections. Whether for signal or power applications, this connector is a dependable choice for automotive systems.
